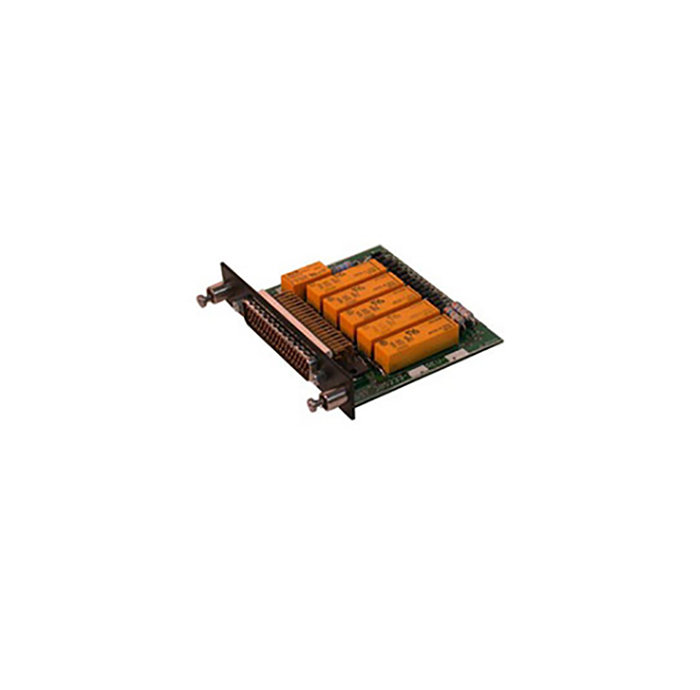

Picture of product SR-54-1

Part #: 306111-00

Model: SR-54-1

OEM:

Sandia Aerospace

Part Number :
Sandia Aerospace
SR54-1 Switching Relay

FEATURES
  • The SR 54 provides 20 poles of switching through five, hermetically sealed, bifurcated relays
  • SR 54 has a built in circuit that switches all relays to their de-energized condition whenever K6 is activated
  • Can be used for such applications as insuring LOC is presented on the HSI whenever a LOC signal is selected
  • The relays contacts are gold plated and have a 2 amp resistive load rating at 28 VDC. Coil current is 120 mA
  • Certification: FAA-PMA Pending
  • Pick up Voltage: 28VDC
  • Nominal Coil Impedance: 120mA
  • Max Contact Rating: 2A @ 28VDC Restive Load

SPECIFICATIONS
Weight: .26 lbs dimensions: W 3.92 x H 3.5 x D .82 in
operating temperature: -20° to +55°C aLTITUDE: 50,000 ft.
voltage: 28 VDC PMA: Pending
Current Req: 120mA
Part Number Description
306111-00 SR54-1 Switching Relay





306111-00
- 20 Pole Relay Switching Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
