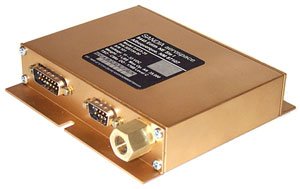

Picture of product SAE5-35

Part #:

Model: SAE5-35

OEM:

Sandia Aerospace

Desc:

Altitude Encoder (35K, RS232 Output)

Part Number :


SAE5-35
FEATURES
  • 35 Thousand Foot Encoder with Dual RS232 Outputs
  • Certified to 35 thousand feet
  • Accurate to within 50 feet throughout its entire operating range
  • 100' resolution grey code output for transponder interface
  • Dual 232 output with 10' resolution
  • Exclusive altitude in-flight monitoring - set desired cruise altitude & receive a warning at 100 feet deviation
  • 1.1" high for mounting versatility
  • Temperature compensated pressure transducer
  • Transient and reverse voltage protection
  • TSO'd



SPECIFICATIONS
Size: 1.06"H x 4.87"W x 4.74"D Weight:  .7 lbs
Altitude:  35,000 feet Current: .9 amps (w/heater on)
Outputs:  One Grey Code, Two RS232 Resolution: Grey Code-- 100 feet, RS232-- 10 feet
Accuracy:  50 feet or better throughout range  TSO:  C88a
Part NumberEncoder Description:
705154-00 See Description Above



305154-00
- Blind Encoder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
705154-00
- Altitude Encoder (35K, RS232 Output)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
