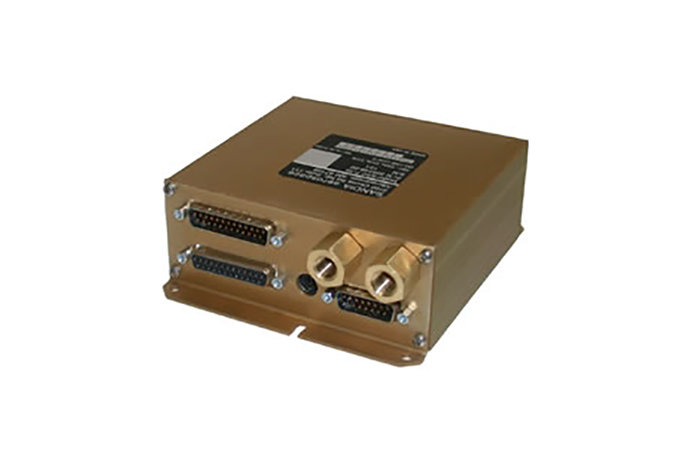

Picture of product SAC7-35-01

Part #: 705548-01

Model: SAC7-35-01

OEM:

Sandia Aerospace

Desc:

Air Data Computer

Part Number :
Sandia Aerospace
SAC7-35-01 AIR DATA COMPUTER

FEATURES
  • The SAC 7-35 is a solid state -1000 to 35,000 foot airdata computer and altitude encoder
  • With the addition of a fuel flow transducer(s), the SAC 7-35 will also provide fuel flow data to systems capable of displaying that information
  • The SAC 7-35 provides five data outputs that allow it to interface with a wide range of transponders, TAWS, MFD’s, Navigation Systems and a variety of other avionics products
  • The SAC 7-35 can also be installed for use in a variety of converter functions. Contact factory for more information
  • One ARINC 429 High Speed output, airdata and/or ADS-B
  • Two RS-232 airdata output ports (including fuel flow or ADS-B)
  • 2 RS-232 serial encoder outputs
  • One ARINC 429 High Speed output, airdata and/or ADS-B
  • Two RS-232 airdata output ports (including fuel flow or ADS-B)
  • Two RS-232 serial encoder outputs
  • One Gillham Grey code output for legacy transponders and RS-232 data for the new generations of transponders
  • One SANDIA Altitude In-flight Monitoring (AIM) feature
  • The SAC 7-35 is FAA TSO Approved as an altitude encoder
  • The SAC 7-35 has SANDIA Aerospace’s exclusive AIM (Altitude Inflight Monitoring) that alerts the pilot anytime he deviates more than 100 feet from his selected altitude
  • The addition of a fuel flow transducer (two for a twin) and your SAC 7-35 provides all the fuel flow data your navigation systems needs to monitor your fuel situation
  • The SAC 7-35 is a full up TSO’d Airdata Computer offering all of the functions and capabilities of systems costing thousands of dollars more

SPECIFICATIONS
Weight: 1.18 lbs dimensions: 5.62 x 4.87 x 1.89 in
version: 705548-01, 305548-01
Part Number Description
705548-01 Air Data Computer
305548-01 Air Data Computer





705548-01
- Air Data Computer
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
