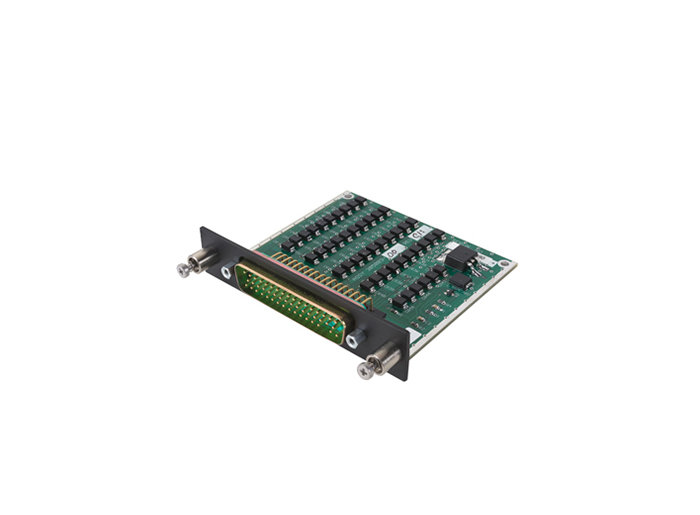

Picture of product SA24

Part #: 305003-01

Model: SA24

OEM:

Sandia Aerospace

Desc:

Diode Isolation Module

Part Number :
Sandia Aerospace
SA 24 Diode Isolation

FEATURES
  • The SANDIA aerospace SA 24 provides the installer with 23 lines of diode isolation in a convenient and versatile package
  • Each line provides isolation and all 23 lines can be grounded simultaneously by an internal FET for indicator testing
  • The test circuit can be activated by either a grounded control line or by a 28 Vdc pull-up
  • The SA 24 can be installed in the SANDIA aerospace SR- 1 single module enclosure or in either the SRU-5 or SRU-10 multi-module enclosures
  • The SA 24 is approved for use up to 70 thousand feet
  • 23 Diode Isolation Lines
  • Internal FET Test Circuit for Simultaneous Test of All Positions
  • PMA Approved
  • Tested to Meet or Exceed DO160D
  • Easily Field Serviceable – Worldwide
  • Backed By SANDIA aerospace’s 3 Year Warranty

SPECIFICATIONS
Weight: .18 lbs dimensions: W 3.92 x H 3.5 x D .82 in
operating temperature: -55° to +70°C aLTITUDE: 70,000 ft.
voltage: N/A STC/ PMA: ST09475SC-Yes** SA 24 PMA'd with SRU 1 as SAS 1 24
CURRENT REQ: .003 Amp AIRCRAFT: Embraer EMB120
Part Number Description
305003-01 Diode Isolation Module





305003-01
- Diode Isolation Module
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
