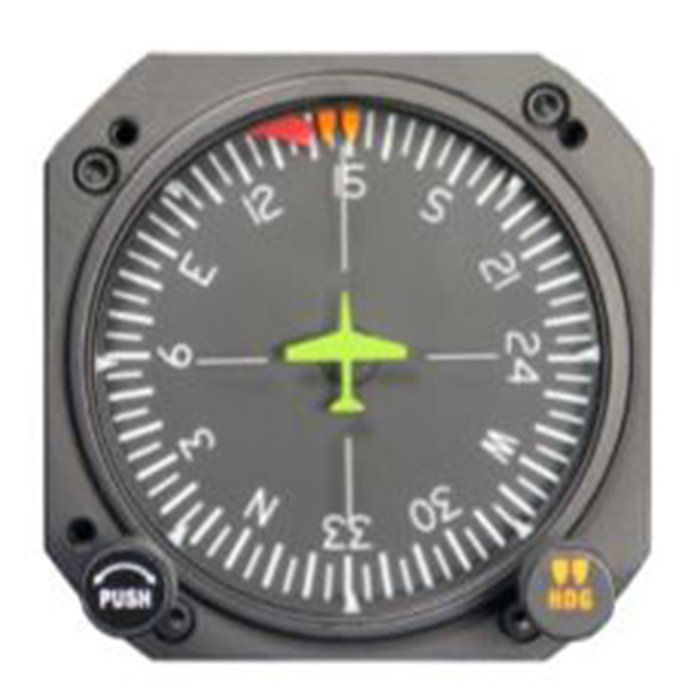

Picture of product RCA15AK-16

Part #: 103-0038-01

Model: RCA15AK-16

OEM:

RC Allen

Desc:

Electric Directional Gyro

Part Number :


FEATURES
  • Push-to-Set knob
  • AC brushless motor
  • Power Failure flag
  • Un-lighted
  • 14 and 28 volt models
  • Heading Bug or 400HZ, 5K autopilot output
  • 14 VDC, 400HZ, 5K
  • Mating connector MS3116E8-4S Autopilot mating connector: Amphenol part number 126-223 or Winchester part number M5SH9C



SPECIFICATIONS
Length: 7.4 in. Height: 3.4 in.
Width: 3.4 in. Weight: 3.0 lbs.
Starting Current: 14 VDC - 2.4 A max; 28 VDC - 1.4 A max Running Current: 14 VDC - 1.2 A; 28 VDC - 0.6 A
Recommended Circuit Breaker: 14 VDC - 3 A; 28 VDC - 2 A Connector Pinout A: Ground Motor
Connector Pinout B: +14 VDC Motor Connector Pinout C & D: Spare
Autopilot Pinout D:  HDG SIG Input Autopilot Pinout B: HDG SIG Input Common
Autopilot Pinout A:  HDG SIG Output Autopilot Pinout E: HDG SIG Output Common
Autopilot Pinout H: Spare
Part Number Directional Gyro Description:
RCA15AK-16 Electric Directional Gyro



103-0038-01
- Gyro, 14 Volt, 400 hz, 5HKz Auto-Pilot Output
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
