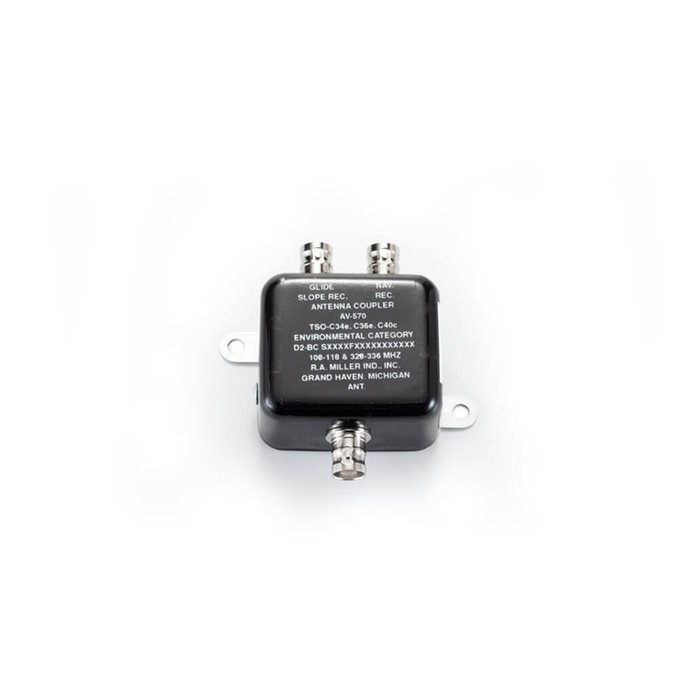

Picture of product AV570

Part #: AV-570

Model: AV570

OEM:

RA Miller

Desc:

Nav Antenna Splitter

Part Number :



AV-570



FEATURES

  • AV-570 diplexer splits the signal from a VOR-Type NAV antenna to feed a NAV/LOC and a GS receiver
  • Diplexer construction is similar to the AV-547 splitter and operates at altitudes up to 50,000 ft.
  • Direct replacement for the CI 507



SPECIFICATIONS
Application: Airborne Communications Frequency: 108-118 MHz328-336 MHz
Impedance: 50 ohms nominal VSWR: 1.4:1 Maximum
max Weight: 3.5 oz. FAA TSO C34e, C36e, C40c
CONNECTORS: (3) “BNC” Female ISOLATION: 38 dB Minimum
INSERTION Loss: 1 dB Maximum
Part Number: Description:
av570 Nav Antenna Splitter



AV-570
- Nav Antenna Splitter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
