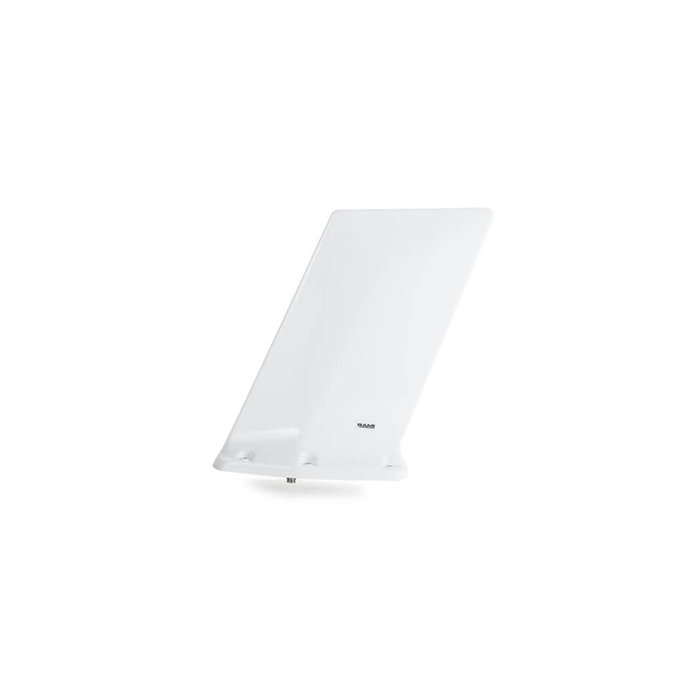

Picture of product AV-925

Part #: AV925

Model: AV-925

OEM:

RA Miller

Part Number :



AV-925



FEATURES

  • The AV-925 antenna was developed to be used with airborne FM transceivers
  • It is typically used in first responder type aircraft providing a single antenna solution for multiband transceivers
  • Meets DO-160G, Section 8, Category U requirements for robust vibration and is qualified for installation on helicopters with unknown related rotor frequencies
  • Qualified to perform as a 406 MHz ELT antenna
  • Suited for this function on higher speed
  • Fixed wing aircraft



SPECIFICATIONS
Application: Airborne Communications Frequency: 136.0 – 174.0 MHz (Non TSO Function), 380.0 – 406.0 MHz (Non TSO Function), 406.0 – 406.1 MHz (TSO C126a), 406.1 – 520.0 MHz (Non TSO Function), 760.0 – 870.0 MHz (Non TSO Function)
Impedance: 50 ohms nominal VSWR: 1.5:1 Max. (406.0 – 406.1 MHz) 3.0:1 Max. (All Other Bands)
Polarization: Vertical Pattern: Omni-Directional
max height: 17″ RF Power Capacity: 25 Watts
gain: Comparable to that of a quarter wave monopole when mounted on a 4-foot round ground plane color: P/N: AV-925 Gloss White P/N: AV-925(-1) CARC Black
Part Number: Description:
av925 Tri-Band Comm Antenna



AV925
- Tri-Band Comm Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
