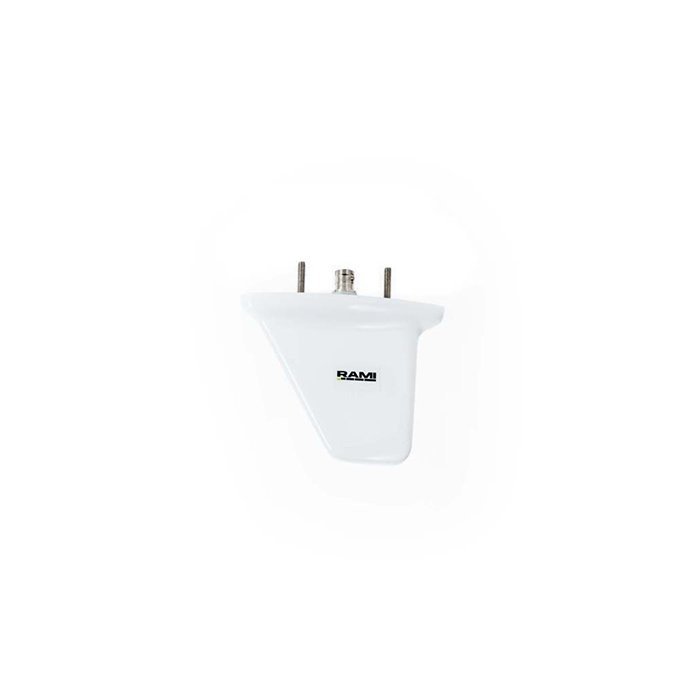

Picture of product AV-74-1

Part #: AV-74-1

OEM:

RA Miller

Part Number :

AV-74-(1)

FEATURES
  • The AV-74(-1) is a broadband blade type antenna for transponder or DME application
  • Antenna has longer mounting studs for thicker mounting locations
  • Housing is constructed of anacrylonitrile-styrene-acrylic (ASA) shell
  • White color allows maximum performance without losses due to color pigments or unseen dirt
  • Supplied with cellular neoprene mounting pad and hardware
  • Designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft
  • Has a drag force of 0.09 lbs @ 250 mph Direct replacement for the CI 105-16




SPECIFICATIONS
Application: Transponder/DME/ADS-B Frequency: 960 – 1220 MHz
Impedance: 50 ohms nominal VSWR:  1.5:1 Maximum
Polarization: Vertical Pattern: Omni-Directional
RF Power Capacity: 2.5 wK Peak Connector: BNC Female
Max Weight: 9 oz. Max  Max weight: 0.2 lbs.
gain: Unity color: Gloss White
faa tso: C66c, C74c model: AV-74-(-1)
Part Number:  Description:
AV-74-1 Transponder/DME



AV-74-1
- DME/Transponder Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
