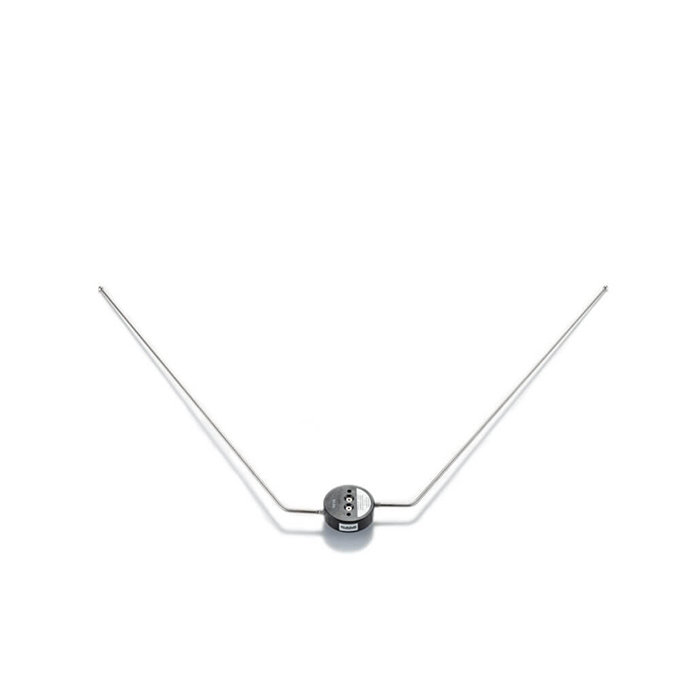

Picture of product AV-532

Part #: AV-532

NSN:

5985-01-350-7430

OEM:

RA Miller

Desc:

VOR/LOC/GS Receive Only Antenna

Part Number :



AV-532



FEATURES

  • AV-532 is a VOR/LOC/GS receive only antenna
  • Taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads.
  • Insulators are weather-sealed compression-molded bakelite with the mounting holes provided.
  • Unit may be mounted with the V pointed either forward or aft.
  • Designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft.
  • Drag force of 3.42 lb @ 250 mph
SPECIFICATIONS
Application: VOR/LOC/GS (Receive Only) Frequency: 108-118 MHz, 328-336 MHz
Impedance: 50 ohms nominal VSWR: 1.4:1 Maximum
Polarization: Vertical Pattern: Omni-Directional
MAX WEIGHT: 3.5 oz. CONNECTOR: (4) “BNC” Female
FAA TSO: C34e, C36e, C40c ISOLATION: 22 dB Minimum / 35 dB Avg
INSERTION LOSS: 1 dB Maximum (GS), 3.5 dB Maximum (VOR/LOC)
Part Number: Description:
av-532 VOR/LOC/GS Receive Only Antenna



AV-532
- Antenna

NSN: 5985-01-350-7430

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
