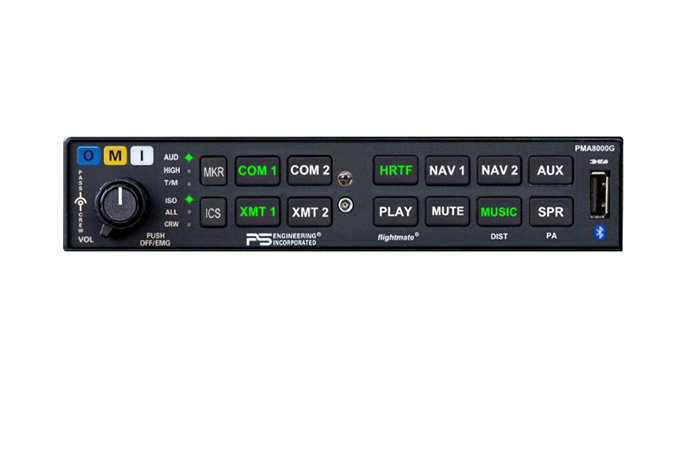

Picture of product PMA8000G

Part #:

Model: PMA8000G

OEM:

PS Engineering

Desc:

Audio Selector Panel w/ flightmate, USB, Streamer

Part Number :


PMA8000G



FEATURES

  • Com 1, Com 2, Nav 1, Nav 2 capability
  •  IntelliAudio® True Dimensional Sound gives Pilots the ability to discern important radio calls
  • 6-Place hi-fi stereo IntelliVox® Intercom with Soft Mute™
  • Bluetooth® enabled allows connection of iPhone, iPads and other PDAs for both music streaming and telephone.
  • 3 - music mute modes: Mute On, Mute Off, Radio Mute
  • flightmate®  the first system ever to be available in an audio selector panel, pilot can create checklists, and emergency procedures
  • Cellular telephone input with front panel control of side tone
  • Digital aircraft radio recorder (IRS™)
  • USB Charging port with Auto-Protect, provides up to 10 Watts of power for iPhones, iPads and other PDA Accessories.
  • Split mode for dual audio panel capability
  • 2 - Differential, hi-fidelity stereo music source inputs (no ground loop noise)
  • 3 - Isolation modes - Pilot Isolate, All, and Crew with “Alternate Intercom Mode”
  • Selectable music distribution for Pilot, Copilot and passengers
  • Audio Panel with IntelliAudio®, Marker, Stereo Intercom, and Bluetooth connectivity plus flightmate® message system. Includes PS Streamer
  • Additional Information: PMA8000G Installation Manual



SPECIFICATION

marker beacon:  FAA TSO C35d, Class A ETSO 2C35d audio selector/ intercom: FAA TSO C50c, Class 1a ETSO C50c
applicable documents: RTCA/DO-214 RTCA/DO-143 RTCA/DO-160D RTCA/DO-178B DO-254 qualifications: A1D1CABSMXXXXXXZBABATBXXE2XXX
operating temperature range: -15º C to 55ºC VOLTAGE: 11 to 33 VDC
dimensions: Height: 1.3 in. (3.3 cm) Width: 6.25 in. (16.9 cm) Depth behind panel 7.15 in. (18.16 cm) MAXIMUM CURRENT:  2.5 Amp (Externally protected by a 5A pull-type breaker)
ALTITUDE:  Up to 50,000 feet in an non-pressurized area input isolation:  60 dB (min.)
weight:  Unit 1.34 lb. (0.61 kg), Rack & connectors 0.51 lb. (0.24 kg) AUDIO SELECTOR PANEL Impedance: Input-510 Ω
unswitched inputs: 4 transmitter selections: 4 (Com 1, Com 2, TEL Com1/2)
headphone impedance: 150 – 1000 Ω headphone output: 38 mW each headset, no clipping <1% THD
speaker impedance:  4 Ω microphone impedance: 150 - 600 Ω
intercom position: 6 places (with individual IntelliVox® circuits) music inputs: 2, (Independent, Stereo)
music muting: >-30 dB "Soft Mute" when Com or intercom active distortion: <1% THD @ 38 mW into 150
mic freq. response  3dB, 300 Hz - 6000 Hz FREQUENCY: 75 MHz Crystal Controlled
SENSITIVITY :

Capable of: (preset at factory for field application) Low: 1000 µVolts (Hard) (360 to 570 µV soft) High: 200 µVolts (Hard) (130 to 200 µV soft)

SELECTIVITY: -6 dB at ±10 kHz -40 dB at ±120 kHz
EXTERNAL LAMP OUTPUT: 7.5 (±4 VDC unloaded, at maximum brightness) VDC positive when active, max. current 125 mA MM SENSE: Active high (4.5 ± 1.0VDC)
bluetooth radio: Class 3, FCC ID QOQWT32AE receiver inputs: 8 (Com 1, Com 2, TEL, Nav 1, Nav 2, ADF, DME, AUX)
usb power converter: FAA-TSO C71 usb charging port: Voltage - +5VDC Current - 2.0A (10W Maximum) output, short circuit and over-current protected
music freq. response: 3dB, 10 Hz – 26 kHz speaker output: (into 4 ) with no clipping 14 VDC: 28 VDC: 3 Watts (min.) 10 Watts (min.)







Part Number: Description:
050-890-0912 Audio Selector Panel w/ flightmate, USB, Streamer



050-890-0912
- Audio Selector Panel w/ flightmate, USB, Streamer
Price Condition Status
$1,995.00 NEW OUTRIGHT REQUEST LEAD TIME
050-890-0914
- Audio Panel w/ Expanded ICS
Price Condition Status
$2,295.00 NEW OUTRIGHT REQUEST LEAD TIME
050-890-0917
- Audio Panel w/o Marker Beacon Receiver
Price Condition Status
$1,795.00 NEW OUTRIGHT REQUEST LEAD TIME
