Part #:

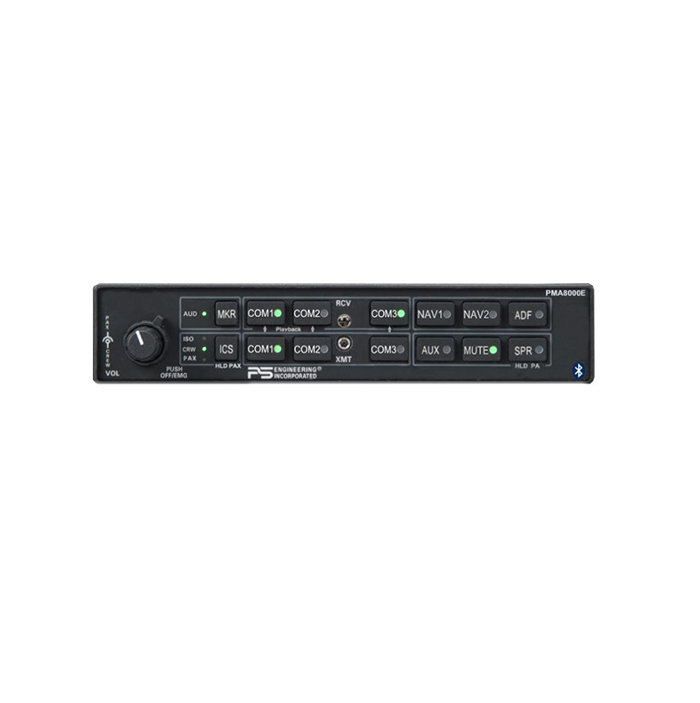

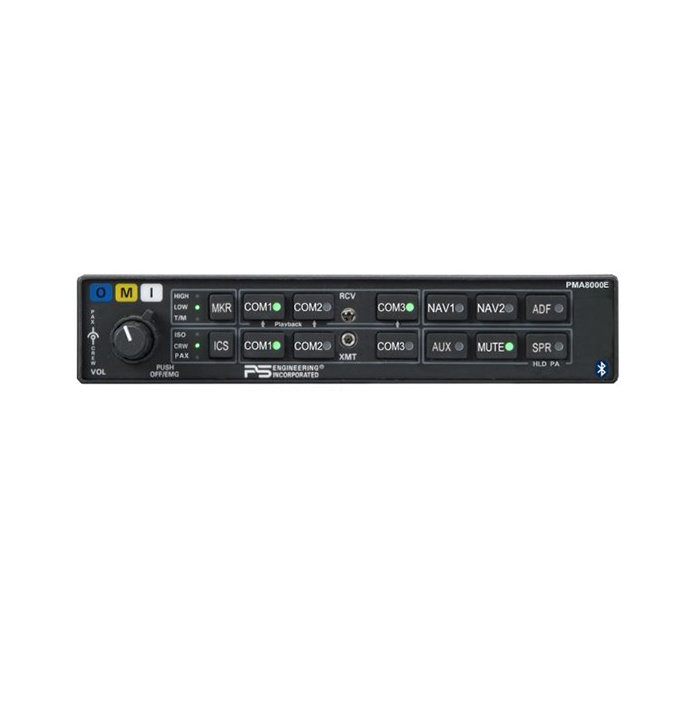

Model: PMA8000E

OEM:

PS Engineering

Desc:

Dual Audio Panel w/ CVR

Part Number :



PMA8000E



FEATURES

  • Audio isolation amplifier and audio selector
  • Contains a automatic voice activated (VOX) intercom system
  • Designed for dual Audio Panels
  • Unit sends status information to the secondary audio panel to prevent undesirable operations
  • Allows you to switch three transceivers (COM 1, Com 2 , Com 3) and two receivers (Nav 1, Nav 2, ADF, AUX-DME, and MKR)
  • Full duplex telephone interface allows PMA8000E to act as an audio connection between aircraft headphone and microphones



SPECIFICATIONS

Dimensions:  H 1.3 in (3.3 cm) x W 6.25 in. (16.9 cm) Depth behind panel 7.15 in. (18.16 cm) Weight: 1.34 lbs. (0.61 kgs), Rack with connectors 0.51 lbs (0.24 kgs)
operating Temperature: -15°C to 55°C Altitude: Up to 50,000 ft in a non-pressurized area
Voltage: 11 to 33 VDC Max Current: 0.25 Amp (Externally protected by a 3A pull-type breaker)
music Freq response: (3 dB) 10 MHz-26 kHz  mic freq response:  (3 dB) 300 Hz- 6000 kHz
Headphone impedance: 150-1000 Ω mic Impedance: 150-600 Ω
headphone output: 38 mW each headset, no clipping <1% THD typical into 150 Audio selector panel impedance: input impedance 510 Ω
input isolation: -60 dB (min) speaker muting: -60 dB (min)
speaker impedance: 4 Ω Music inputs: 2, (Independent, Stereo)
Part Number: DESCRIPTION:
050-890-0414 Dual Audio Panel w/ CVR 14/28 VDC- No Marker
050-890-0415 Dual Audio Panel w/ CVR 5VDC- No Marker
050-890-0514 Dual Audio Panel w/ CVR 14/28V- Beacon Marker
050-890-0515 Dual Audio Panel w/ CVR 5VDC- Beacon Marker



050-890-0414
- Dual Audio Panel w/ CVR 14/28V- No Marker
Price Condition Status
$7,695.00 NEW OUTRIGHT REQUEST LEAD TIME
050-890-0415
- Audio Panel w/ CVR 5V- no mkr
Price Condition Status
$7,695.00 NEW OUTRIGHT REQUEST LEAD TIME
050-890-0416
- Dual Audio Panel, 14/28V Light, Gray)
Price Condition Status
$7,795.00 NEW OUTRIGHT REQUEST LEAD TIME
050-890-0417
- Dual Audio Panel, 5V Lighting, Gray
Price Condition Status
$7,795.00 NEW OUTRIGHT REQUEST LEAD TIME
050-890-0514
- Audio Panel w/ CVR 14/28V w/ mkr
Price Condition Status
$7,995.00 NEW OUTRIGHT REQUEST LEAD TIME
050-890-0515
- Audio Panel w/ CVR 5V- w/ mkr
Price Condition Status
$7,995.00 NEW OUTRIGHT REQUEST LEAD TIME
050-890-0516
- Dual Audio Panel, 14/28V Light, Marker, Gray
Price Condition Status
$8,095.00 NEW OUTRIGHT REQUEST LEAD TIME
050-890-0517
- Dual Audio Panel (5V, Gray w/ Marker)
Price Condition Status
$8,095.00 NEW OUTRIGHT REQUEST LEAD TIME
