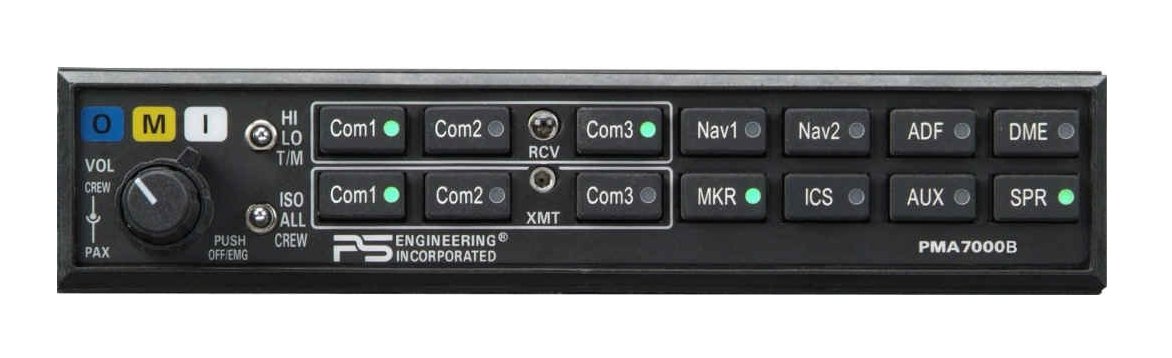

Picture of product PMA7000B

Part #:

Model: PMA7000B

OEM:

PS Engineering

Desc:

Stereo Audio Panel w/ Marker Beacon

Part Number :

PMA7000B
FEATURES
  • The PMA7000 series audio panel provides upgrading for an existing Bendix/King KMA24 audio panel
  • KMA24 pin compatible
  • None of the existing wires going to the KMA24 have to be disturb, only a new intercom wire harness has to be built, reducing the amount of installation time
  • 6-place IntelliVox® automatic Voice Operated Relay (VOX) intercom system
  • No clipping or missed syllables
  • 3-com capability with the option to easily convert Com 3 to a full duplex cellular telephone interface
  • IntelliVox® automatic VOX system with individually gated microphones
  • 6 - Place hi-fi stereo intercom with Soft Mute™
  • 2 - music mute modes: Mute On and Mute Off
  • Built-in Marker Beacon Receiver
  • Cellular telephone input with dedicated On/Off hook switches for unprecedented flexibility
  • Split mode for dual audio panel capability
  • 2  hi-fidelity stereo music source inputs
  • 3 - Isolation modes - Pilot Isolate, All, and Crew
  • 4 - unswitched inputs
  • Selectable music muting for passengers
  • Selectable special intercom mode with  "Alternate Intercom Mode"
  • RAM (Radio Active Mute) eliminates constant back ground noise from radio static
  • Optional Digital Recorder Aural Warning System
  • Dual volume controls for crew and passenger control



SPECIFICATIONS
 receiver inputs: 5 - Nav 1, Nav 2,ADF,AUX, DME approval basis: C35d Class A, C50c-Class A
marker beacon: Internal certification documents: RTCA DO-160C, DO-178B, DO-143, DO-214
un-switched inputs: 4 intercom: 6-place Stereo
power required: 11-33 VDC, 1.5 A transceivers: 3 - Com 1, Com 2, Com 3 (or Tel Duplex)
power consumption: Speaker on, 600mA typical. 1A peak Speaker off, 350 mA output power/speaker headphone: 3 W into 4Ω (14V) 10W into 4Ω (28V), 50 mW into 150Ω w/o clipping, 38 mW into 150Ω, <1% distortion
audio frequency response: ±3dB, 300Hz-6,000Hz WEIGHT: 1.5 lb
ENTERTAINMENT FREQUENCY RESPONSE: ±3dB, 20Hz-18,000 Hz DIMENSIONS: 6.25" W x 1.3" H x 6.8" deep behind instrument panel
ENVIRNMENTAL cONDITIONS: DO-160C A1D1/CA(MN)XXXXXXBBBBTBKXX TEMPERATURE RANGE: -15 C to +55 , with brief operation at +70 C
ATTITUDE: 50,000 feet, unpressurized MARKER RECEIVER: 75 MHz crystal controlled receiver
EXTERNAL MARKER: Lights and MM sense output











050-781-0103
- Audio Selector Panel w/o Marker Beacon
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
050-781-0203
- Stereo Audio Panel w/ Marker Beacon
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
