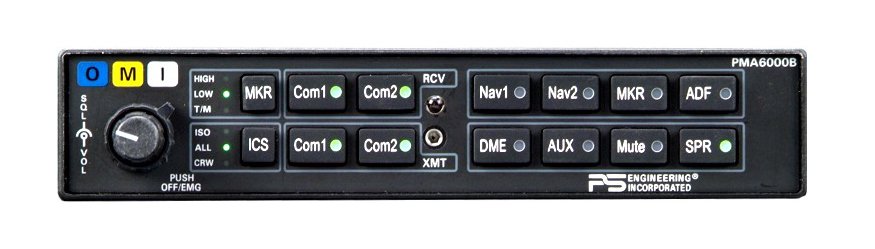

Picture of product PMA-6000B

Part #:

Model: PMA-6000B

OEM:

PS Engineering

Desc:

Audio Panel w/ Marker Receiver

Part Number :


PMA6000B
FEATURES
  • Audio Selector Panel
  • State of the art audio isolation amplifier and audio selector with a voice activated (VOX) intercom system
  • Low cost audio panel alternative
  • FAA TSO & EASA ETSO
  • Designed for easier installation with a single 44-pin Sub-d connector
  • Built-in 4 place mono intercom PS Engineering's "Set-it and Forget-it" manual VOX
  • Optional built-in marker beacon receiver
  • Split mode for dual audio capability
  • 2 - Com capability
  • 3 - Intercom isolation modes - Pilot Isolate, All and Crew
  • 2 - Music inputs with Soft Mute™
  • 2 - Unswitched inputs
  • 6 - Switched inputs
  • A patented "swap" function allows selection of Com 1 and Com 2 from remote pushbutton
  • Fail-safe feature automatically hard-wires the pilot to Com1 in the case of an outage



SPECIFICATIONS
FAA TSO: Marker Beacon: C35d, Class A; Audio Selector/Intercom: C50c, Class A Env. Categories: A1D1/CAMXXXXXXXBBBBAAX
Max. Current: 1 amp Operating Current: 350mA (typical, speaker off), 600mA -speaker on (1 amp peak)
Temperature: -20°C to 55°C Operating; -40°C to +85°C Storage Altitude: Up to 50000 ft. in an non-pressurized area of the cockpit
Dimensions: 6.25"W x 1.3"H x 6.8"D Weight: 1.5 lbs. (w/rack & connectors)
Power Requirements: 13.75 or 27.5VDC Max Current: 1 Amp
Input Impedance: 510 Ohms for all audio inputs Input Isolation: -70dB



050-604-0100
- Audio Panel w/o Marker Receiver
Price Condition Status
$1,395.00 NEW OUTRIGHT REQUEST LEAD TIME
050-604-0300
- Audio Panel w/ Marker Receiver
Price Condition Status
$1,495.00 NEW OUTRIGHT REQUEST LEAD TIME
6000B
- Audio Panel w/ Marker Receiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
