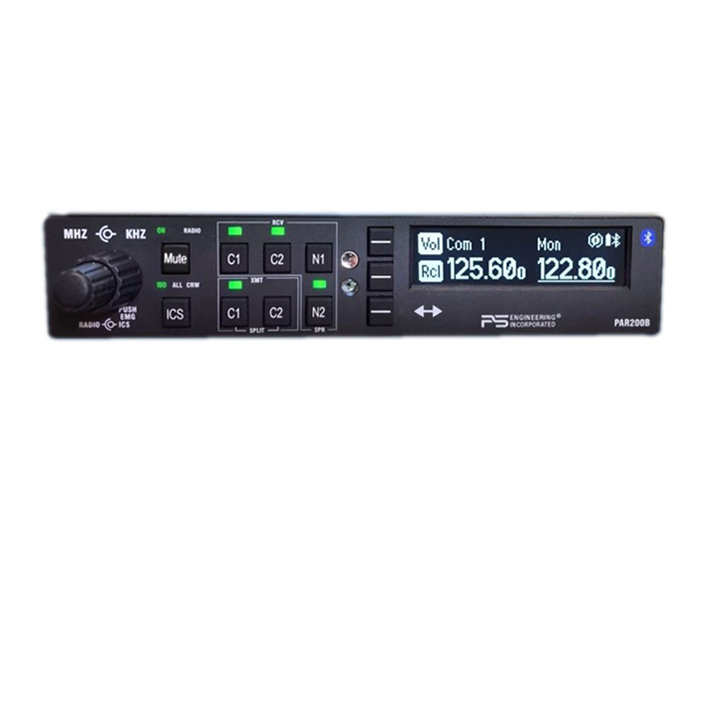

Picture of product PAR200B

Part #:

Model: PAR200B

OEM:

PS Engineering

Desc:

Stereo Audio Selector Panel

Part Number :



PAR200B



FEATURES

  • Audio isolation amplifier and audio selector
  • Contains a automatic voice activated (VOX) intercom system
  • Serial data control/indication for Trig VHF communications receiver
  • Allows you to switch two transceivers (COM 1, Com 2) and two receivers (Nav 1, Nav 2)
  • Bluetooth telephone feature allows the PAR200B to interface the aircraft headset(s) and bluetooth enabled cellular devices
  • Dual concentric knob on left sidecontrols intercom volume



SPECIFICATIONS

Dimensions:  H 1.3 in (3.3 cm) x W 6.25 in. (16.9 cm) Depth behind panel 7.15 in. (18.16 cm) Weight: 1.0 lbs. (0.45 kgs), Rack with connectors 0.51 lbs (0.24 kgs)
Temperature: -20°C to 55°C, short term -40°C to +70°C Altitude: Up to 35,000 ft in a non-pressurized area
Voltage: 11 to 33 VDC Max Current: 0.25 Amp (Externally protected by a 3A pull-type breaker)
music Freq response: (3 dB) 10 MHz-16 kHz  mic freq response:  (3 dB) 300 Hz- 6000 kHz
Headphone impedance: 150-1000 Ω mic Impedance: 150-600 Ω
headphone output: 38 mW each headset, no clipping <1% THD typical into 150 Audio selector panel impedance: input impedance 510 Ω
Part Number: DESCRIPTION:
050-228-0300 Stereo AudioSelector Panel w/VHF Comm Control & Transceiver
051-228-0300 Stereo AudioSelector Panel w/VHF Comm Control, no transceiver



050-228-0300
- Audio Selector Panel w/ Trig Radio
Price Condition Status
$3,095.00 NEW OUTRIGHT REQUEST LEAD TIME
050-228-0302
- Audio Panel w/ Comm Radio, Expanded ICS
Price Condition Status
$3,995.00 NEW OUTRIGHT REQUEST LEAD TIME
051-228-0300
- Audio Selector Panel (Panel Only)
Price Condition Status
$2,295.00 NEW OUTRIGHT REQUEST LEAD TIME
