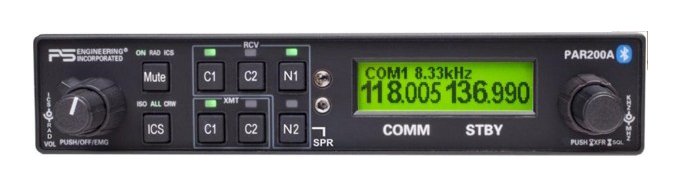

Picture of product PAR200A

Part #:

Model: PAR200A

OEM:

PS Engineering

Desc:

Audio Panel w/ VHF Transceiver

Part Number :


PAR200A
FEATURES
  • The Pilot can store up to 5 frequencies in non-volatile memory so he can easily tune to his frequently used channels
  • The radio also has autosquelch, so you will always have optimal radio sensitivity
  • The left half controls the audio panel for radio selection, intercom and music volume, intercom modes, and multiple music mute mode control
  • The PAR200A has two independent music inputs. Independent power supplies assure operation in failsafe on the audio panel; the VHF radio can still be used
  • The PAR200A can be configured as stand alone, as COM 1, or as COM 2.  This provides flexibility to allow the aircraft owner to decide if a second radio will be used and in what position
  • The PAR200A includes a cockpit speaker amplifier for additional flexibility
  • An integrated Bluetooth® system allows the PAR200A to interface with cellular telephones, giving the aircraft occupants ready access to their telephones
  • In addition, the Bluetooth® will stream music from compatible devices like iPads,and smart phones
  • The PAR200A is an FAA Approved system that combines an audio control panel, 4-place stereo IntelliVox® intercom with Bluetooth®, and a remote mounted, 760/2280-channel VHF aviation communications transceiver
  • This system saves cockpit space, weight, and money over stand-alone independent systems while providing the most sought after functionality
  • The PAR200A is attractive for the aircraft that is used primarily for VFR missions or as an audio panel/back-up com to more advanced systems
  • The elimination of one panel mounted radio saves valuable panel space
  • Seamless integration between the audio panel and the radio was the goal for the best user experience possible, while keeping the system costs to a minimum
  • The right half of the PAR200A is dedicated to the communication radio, with an easy to read LCD display that shows the frequencies, which are controlled through a concentric knob
  • This radio has active and standby frequencies, and a standby frequency monitor mode that permits listening to both active and standby frequencies
  •  Additional PAR200A Information: PAR200A Installation Manual
SPECIFICATION
PAR200A AUDIO PANEL& RADIO:  - FAA - TSO - EASA - ETSO PAR200A UNIT Weight: 1.1 lb. (0.49 kg)
OPERATING Temperature RANGE: -20º C to 55ºC , short term -40°C to +70°C RACK WITH CONNECTORS: 0.51 lb. (0.24 kg)
AUDIO SELECTOR / INTERCOM: FAA TSO C139 EASA ETSO C139 VOLTAGE: 11-33 VDC (18-33 with TY92
eNVIRONMENT QUALIFICATION : DO-160G-A1C1BAESRXXXXXXZ B(XX) ABATTBXXA2E2 XXX MAXIMUM CURRENT:  2.5 Amp (Externally protected by a 3A pull-type breaker)
ALTITUDE:  Up to 35,000 feet in an non-pressurized area input isolation:  60 dB (min.)
receiver inputs:  4 (Com 1, Com 2, Nav 1, Nav 2) AUDIO SELECTOR PANEL Impedance: Input-510 Ω
unswitched inputs: 4 transmitter selector: 3 (Com 1, Com 2, Com 1/2)
headphone impedance: 150 – 1000 Ω headphone output: 30 mW each headset, no clipping <1% THD typical into 150 Ω)
speaker output: (into 4 Ω) with no clipping 14 VDC: 3 Watts (min.) 28 VDC: 10 Watts (min.) microphone impedance: 150 - 600 Ω
intercom position: 4 places (with individual IntelliVox® circuits) (8 with expansion, -0202 ONLY) music inputs: 2 (Independent, Stereo)
distortion: <1% THD @ 30 mW into 150Ω mic freq. response: 3 dB-300 Hz - 6000 Hz
MUSIC FREQ. RESPONCE: 3 dB-20 Hz - 20 KHz CHANNELS (TRANSMIT & RECEIVE) 760 channels, 25 KHz spacing 2280 channels, 8.33 KHz spacing
PWR CONSUMPTION RECEIVE (NO SIGNAL): 2.8W @ 14VDC TRANSMIT: 3.2A
INPUT VOLTAGE: 11-33 VDC 5A Circuit Breaker. POWER OUTPUT: 6 watts (nominal) VSWR Tolerance < 2:1 for best operation (5:1 without damage)
RECEIVER SENSITIVITY: -6dB SINAD @ 5µV (1KHz audio with 70% modulation) TEMPERATURE RANGE: -20 to +70 degrees Celsius
TY91L  vhf input Voltage: 11-33 VDC 5A Circuit Breaker TY91L  vhf WEIGHT: 0.77 lbs (0.350 k)
TY91L  vhf FCC ID: VZI00882 par200a dimensions: Height: 1.3 in. (3.3 cm) Width: 6.25 in. (16.9 cm) Depth behind panel 7.15 in. (18.16 cm)
TY91L VHF Transceiver Dimensions : W-2.5” x H-1.9” x D6.3” (plus 1.5” for harness) W66mm xH-48mm x D-160 (plus 35mm for harness TY91L frequency control: PLL frequency synthesis, which is microprocessor controlled Memory is store in non-volatile EPROM



part number  description:
050-228-0200 Audio Selector Panel with Trig TY91L Remote 8.33KHz VHF Transceiver - 6 Watts
050-228-0201 Audio Selector Panel with Trig TY92L Remote 8.33KHz VHF Transceiver - 16 Watts





050-228-0200
- Audio Panel w/ Comm Radio (8 Watts)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
050-228-0201
- Audio Panel w/ Comm Radio (16 Watts)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
