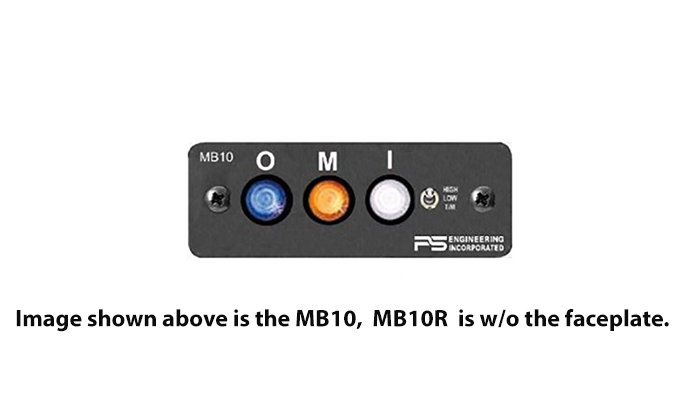

Picture of product MB10R

Part #: 050-023-0101

Model: MB10R

NSN:

5826-01-620-9565

OEM:

PS Engineering

Desc:

Remote Marker Beacon Receiver

Part Number :


MB10R

FEATURES

  • The MB10R is a remote mounted receiver capable of activating either panel mounted lamps (not included), an electronic display system, or both
  • This is a compact, panel, or blind mounted Marker Beacon Receiver (75 MHz)
  • MB10R is a Marker Beacon receiver with 3-lamp indication that provides the Marker Beacon signal for the ILS System
  • A front panel mode switch allows the pilot to select high or low sensitivity, lamp test, and audio mute
  • FAA TSO C35d Additional MB10 Information: MB10R Installation Manual



SPECIFICATION

Dimensions:  0.95" H x 2.8" W x 4.85" D Weight: 6.5 oz
Temperature: -15°C to +55°C Altitude: Up to 50,000 ft in a non-pressurized area
POWER: 11 to 33 VDC <0.25 A Max Current: 0.25 Amp
Frequency: 75 MHz Crystal Controlled Sensitivity:  Capable of: (preset at factory for field application) LOW:1000 µVolts (Hard) (360 to 570 µV soft) HIGH:200 µVolts (Hard) (130 to 200 µV soft)
Selectivity:  -6 dB at ±10 kHz -40 dB at ±120 kHz External Lamp:  7.5 (±4 VDC unloaded, @ max brightness) VDC positive when active, max. current 125 mA per lamp output
MM Sense:  Active High (4.5 ± 1.0VDC) Output Impedance: 510 Ω
Audio Output: 38 mW <1% THD typical FAA-aPPROVAL: TSC C35d, RTCA DO-1



Part Number:  Description:
050-023-0101 Remote Mounted Marker Receiver







050-023-0101
- Remote Marker Beacon Receiver

NSN: 5826-01-620-9565

Price Condition Status
$1,295.00 NEW OUTRIGHT REQUEST LEAD TIME
