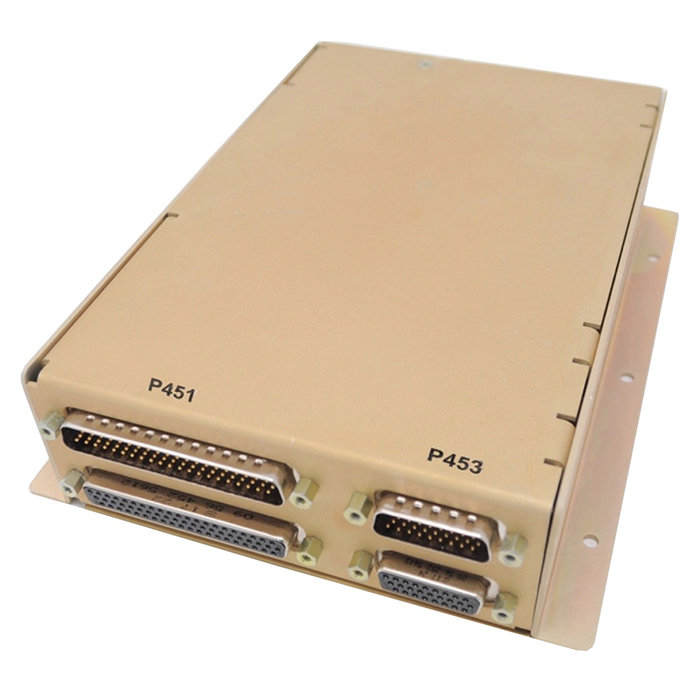

Picture of product HUB45AR

Part #: 050-045-1001

Model: HUB45AR

OEM:

PS Engineering

Part Number :

HUB45AR

DESCRIPTION

  • Using the successful PAC45 as the foundation, the all digital PAC45A adds capabilities that have been requested from operators with unique and additional requirements
  • Two additional Com radios were added for more advanced operational requirements
  • With a total of 8 Coms, MultiTalker™ provides up to 9 unique positions so that each radio has its very own location within the stereo headset
  • Up to four control heads can be connected to the PAC45A hub. Like the PAC45, the hub is the central wiring location for all of the radios with a simple RS-422 serial bus connected to each control head, making the wiring significantly easier when compared to analog audio controllers
  • The PAC45A integrates Receive Audio Indicator (RXI) inside the audio panel
  • Additionally, there are two built-in 10 watt speaker amplifiers for cockpit and public address
  • Up to 9 audio alerts are also available, and through the use of IntelliStore™ each of these inputs can be custom recorded
  • Either rising, falling, or Sonalert inputs can activate these alerts
  • Once acknowledged, they are reset and then begin monitoring the inputs again
  • Sonalert triggers will remain active until the Sonalert voltage is removed


FEATURES

  • Eight (8) Com radio Interfaces
  • MultiTalker™
  • Nine-place stereo IntelliVox® intercom
  • Up to 4 control head capability
  • flightmate®  with IntelliStore™
  • Bluetooth® for cellphone and music inputs with Softmute™
  • Radio Receive Indicator (RXI)
  • Dual CVR (pilot & copilot)
  • Independent and Master Radio Volume Control
  • Field configurable volume controls for unswitched & alerts
  • High noise configuration (low mic gain)
  • Offside Com allows monitoring other Coms when transmitting
  • Night Vision complaint to ANVIS III
  • PIC (Pilot in command) transmit override
  • Swap mode, only swaps on the Coms you’re monitoring
  • Remote Intercom (ISO/ALL/CREW) Selector switch
  • 35 second stuck PTT disconnect
  • Field configurable switched settings – No computer necessary
  • 5VDC to 28VDC lighting with field adjustable settings
  • CALL feature
  • Reversionary mode
  • 2-Year PS Engineering ProSupport

SPECIFICATIONS

OPERATING TEMPERATURE: -55º C to +70ºC WEIGHT: 2.0 lbs. (.905 kg)
ALTITUDE: Up to 50,000 feet in an non-pressurized area HEIGHT: 1.9" Width: 5.88" w/mounting flanges, Length 7.22", 12" w/ all connectors











050-045-1001
- PAC45A Audio Control Hub
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
