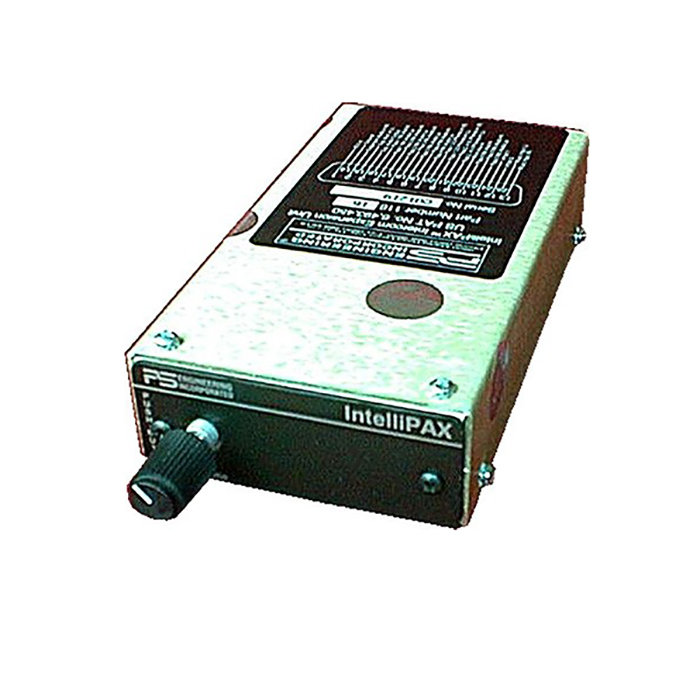

Picture of product 11616

Part #: 11616

OEM:

PS Engineering

Desc:

6-Place Intercom Expansion Unit

Part Number :





FEATURES

  • The IntelliPAX is a panel mounted, multi-place intercom expansion unit used to add up to six extra stations to an intercom system
  • (11616 series) is an intercom expansion unit that works with the PM1000II and PM1200 intercoms
  • IntelliPAX was designed to work with the main intercom unit. No other power is required
  • A Stand Alone unit is connected to a 1A breaker to the avionics bus (2A for dual)



SPECIFICATIONS

Headphone Impedance: 150-1000 Ω typical Audio Distortion: <10% @ 35 mW into 150 Ω load
Aircraft Radio Impedance: 1000 Ω typical 3 dB Mic Frequency Response: 350 Hz — 6000 Hz
3 dB Music Frequency Response: 200 Hz to 15 kHz Unit weight: 7.2 Ounces (0.20 kg)
Dimensions: 1.25" H x 3.00" W x 5.50" D (3.2 x 6.6 x 14 cm)





Part Number Description
11616 6-Place Intercom Expansion Unit















11616
- 6-Place Intercom Expansion Unit
Price Condition Status
$500.00 NEW OUTRIGHT REQUEST LEAD TIME
