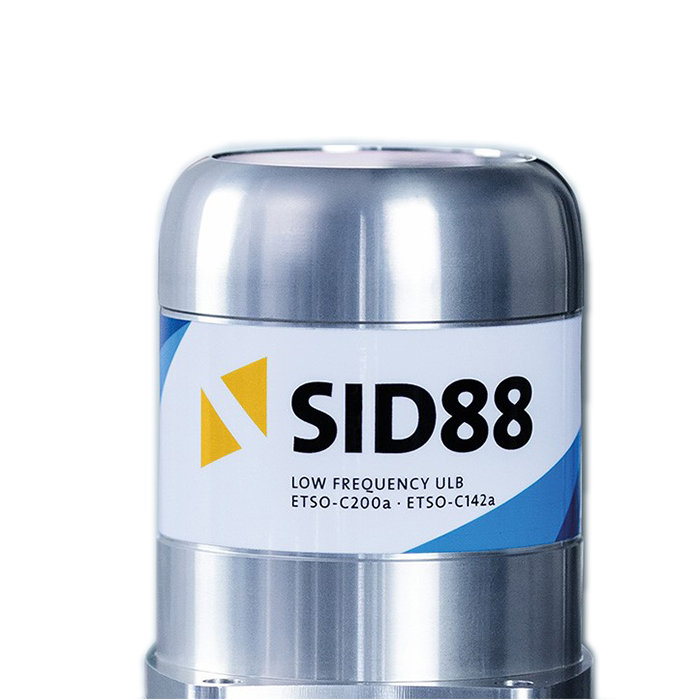

Picture of product SID88
Part #: 21435-00
Model: SID88
Desc: Low Frequency Underwater Locating Device
OEM: Novega
Part Number :
NOVEGA
FEATURES
  • SID88 is a low-frequency Underwater Locator Device (ULD) for aviation
  • Longer detection range due to its lower frequency
  • Water sensitive switch buttons
  • High performance battery
  • High protection case

SPECIFICATIONS
Height: 96 mm (3.78 in.) Operating frequency: 8.8 kHz +/- 1 kHz
DIAMETER: 76 mm (2.99 in.) Operating depth: 6,096 m (~ 20,000 ft)
Pulse permanence: 10 ms (Minimum) Pulse repetition rate: 0.1 pulses/s (Minimum)
Operating life: 90 days Life cycle ULD: 6 years
Acoustic output, initia: 100 N/m rms pressure @ 1m (160 dB) Acoustic output after 30 days: 70.8 N/m rms pressure @ 1m (157 dB)
Operating temperature range: –2°C (28°F) to +38°C (100°F) Storage temperature range: 18°C ± 5°C (65°F ± 10°F)
Transport temperature: –55°C (–67°F) to +70°C (158°F) Activation: Fresh water or salt water
Radiation pattern: 80% of a sphere
Part Number: Description:
21435-00 Low Frequency Underwater Locating Device





21435-00
- Low Frequency Underwater Locating Device
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
