Part #: ST3400-100

Model: ST3400

NSN:

5841-01-669-9533

OEM:

Nighthawk

Desc:

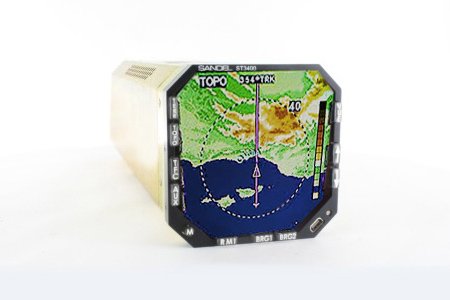

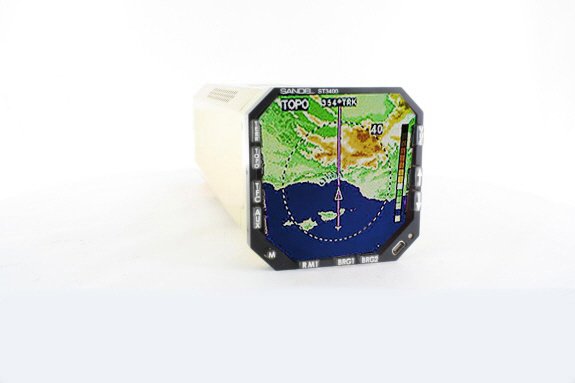

Class B TAWS/RMI (Black)

Part Number :
Nighthawk Logo

ST3400
FEATURES
  • TAWS/RMI panel-mount system
  • Integrated TAWS for corporate, regional and air transport markets
  • 3-ATI sized system which features a TAWS database, processor and oversized, high-resolution color display in a single unit
  • Meets TSO C151b for both Class A and Class B requirements
  • Meets Class A TAWS requirements for airlines and Part 135 operations
  • Meets Class B TAWS requirements for Part 91 operations
  • The ST3400 RMI function is provided to allow the ST3400 to replace an existing installed electromechanical RMI (XYZ & DC SIN/COS)
  • Displays terrain maps, topographic maps, navigation waypoint maps & TCAS data
  • Full-time, 360° viewable, sunlight-readable display
  • Full-time terrain and topo mapping
  • Runway and waypoint overlay
  • Integrated TAWS computer and flat-panel display
  • 10,000 Hour MTBF
  • Patented SandelSmart I/O for analog and digital compatibility
  • Direct aftermarket replacement for standard RMI units
  • Easy to Install
  • Wide variety of FMS/GPS interfaces
  • TCAS I display option
  • 2 Versions available to comply with Class A or B TAWS requirements with either Black or Gray bezel (see P/N chart)
  • STCs available for Cessna 421C (STC# SA01316LA) and King Air C90/200/300/B300 Series (STC# SA01430LA)

Additional Information: Click Here for Pilot's Guide

Note: Class A compliance of ST3400 requires interface to 2000 or 2500 ft. radio altimeter system

SPECIFICATIONS
Dimensions: 3ATI x 9.5" (instrument) Weight:: 3.2 lb.
Display: 1 mega-pixel (360,000 color triad) Power: 28VDC nominal, 35 watts maximum
TSO: C151a (Class A), C113a Audio: 600 ohm unbalanced +14 dbm max
GPS/FMS Position: ARINC 429 or RS-232 Air Data: ARINC 429 or RS-232
Heading: ARINC 429 or XYZ ARINC 407 GPS/FMS Flightplan: ARINC 429 or RS-232
Gear/Flap: ARINC 429, discrete, or DC analog ADF: ARINC 429, DC Sin/Cos, or XYZ ARINC 407
VOR: ARINC 429, DC Sin/Cos, or Composite Video FMS: ARINC 429 or RS-232
Part Number TAWS/RMI Description:
ST3400-000 Unit Only P/N, Class A version, Black bezel
ST3400-001 Unit Only P/N, Class A version, Gray bezel
ST3400-100 Unit Only P/N, Class B version, Black bezel
ST3400-102 Unit Only P/N, Class B version, Gray bezel
90130 Catalog P/N, Class B version, Black bezel
90131 Catalog P/N, Class A version, Black bezel
90135 Catalog P/N, Class A version, Gray bezel
90136 Catalog P/N, Class B version, Gray bezel
90152 Catalog P/N, Class A version, Black bezel, With remote GPS/WAAS sensor
90153 Catalog P/N, Class A version, Gray bezel, With remote GPS/WAAS sensor
90155 Catalog P/N, Class A version, Black bezel, With TCAS interface
90156 Catalog P/N, Class A version, Gray bezel, With TCAS interface
90157 Catalog P/N, Class A version, Black bezel, With remote GPS/WAAS sensor and TCAS interface
90158 Catalog P/N, Class A version, Gray bezel, With remote GPS/WAAS sensor and TCAS interface
90159 Catalog P/N, Class B version, Black bezel, With remote GPS/WAAS sensor
90160 Catalog P/N, Class B version, Gray bezel, With remote GPS/WAAS sensor
90161 Catalog P/N, Class B version, Black bezel, With TCAS interface
90162 Catalog P/N, Class B version, Gray bezel, With TCAS interface
90163 Catalog P/N, Class B version, Black bezel, With remote GPS/WAAS sensor and TCAS interface
90164 Catalog P/N, Class B version, Gray bezel, With remote GPS/WAAS sensor and TCAS interface



ST3400-100
- TAWS/RMI (Class B, Black)

NSN: 5841-01-669-9533

Price Condition Status
$14,950.00 SV OUTRIGHT IN WORK
90130-N
- ST3400-100 Class B TAWS/RMI (Black)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90130U
- LED Upgrade (units above S/N 2000)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90131-N
- ST3400-000 Class A TAWS/RMI (Black)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
ST3400-000
- TAWS/RMI (Class A, Black)

NSN: 5841-01-670-1324

Price Condition Status
REQUEST SVC OUTRIGHT REQUEST LEAD TIME
REQUEST SVC EXCHANGE REQUEST LEAD TIME
ST3400-001
- TAWS/RMI (Class A, Gray)
Price Condition Status
$9,500.00 SV OUTRIGHT REQUEST LEAD TIME
ST3400-102
- TAWS/RMI (Class B, Gray)

NSN: 7025-01-594-6183

Price Condition Status
$6,500.00 SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The Sandel ST3400 TAWS System is unique in that it can accept either a 2000 or 2500 ft. radio altimeter input as part of the Class A TAWS requirements. Most Class A TAWS systems require strictly a 2500 ft. input but Sandel was able to prove equivalency in the functionality of their system with only a 2000 ft. input.
The ST3400 install kit (P/N 90130-IK) includes the following items:
  • Installation Manual
  • 3ATI Mounting Clamp
  • D15 Std Density Connector
  • D44 High Density Connector
  • Flush Mtg Shim
Many avionics systems require a configuration or setup process. This process is required to interface certain avionics systems to other systems in the aircraft that will be inputting or outputting information to and from these systems. Some examples of systems that require a configuration or setup process include:

Autopilot
EFIS
GPS
EGPWS
EHSI
RADAR
TAWS
TCAS


In addition, most newer technology or solid state systems require configuration via computer interface of some type. A qualified avionics technician should always refer to the appropriate manufacturer's installation manual for complete information and instructions.
According to Sandel Service Bulletin SB3400-14, the backlight kits for units with serial numbers below 5000 are no longer available. Sandel has replaced the original backlight kit with a LED kit. The cost for the LED upgrade is $9980 for units with serial numbers below 2000 and $4980 for units with serial numbers below 5000 but greater than 2000.
The GPS-155XL will provide ARINC 429 GPS position information for the ST3400. This is acceptable for Class B requirements. The GPS-155XL does not provide GPS altitude data that may be used for Class A approval.

Yes, Sandel has recently released a service bulletin addressing this issue. The problem has been traced to improper manufacturing tolerances used in the installation of a plastic polarizer in optical system, which does not meet published specifications. Sandel has stated that this problem does not present a flight safety concern and that it is only a cosmetic defect. This service bulletin applies to all serial numbers, shipped prior to August 24, 2009.

A glass polarizer has been designed as a replacement that does not the present the discoloration problem. This part can be retrofitted by the factory into any LED backlit unit.

Identical service bulletins on this problem have also been issued for the SA4550, SN4500 and the SN3500.

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 75% of the original exchange price. That is, it cannot cost SEA more than 75% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.

Sandel ST3400 units below serial number 5000 contain a discontinued style of backlight. The cost of the new LED backlighting kit depends on the serial number of the ST3400. Units with serial numbers 2000 and below will cost $9980 for the LED backlighting kit. Units with serial numbers between 2000 and 5000 will cost $4980 for the LED backlighting kit. Units above serial 5000 were originally manufactured with the new style LED backlight.

For more information, please contact the SEA Sales Team.
Southeast Aerospace does not offer Return To Service paperwork services on General Aviation aircraft for installations that we do not perform.

You might need the following items for your TAWS Installation:


Air Data Computer ADC-2000
TAWS Annunciator MD41-1208
OAT Probe 05257
GPS 1201 FreeFlight GPS
Altimeter w/Output 5934PAD-3BA.649P


Please note that these are suggestions for information purposes only and are not meant as a complete purchasing guide. A TAWS System is a complicated avionics installation and cannot be offered in a standardized list due to different aircraft and situation needs. For a complete and personalized system, please contact SEA Sales.

Similar to other manufacturers, the ordering or catalog part number is different than the part number actually printed on the physical unit. Sandel uses a numbering scheme for ordering new systems that begins with 5 numbers (ex. 90131). However, this part number is not on the actual dataplate of the unit. The part number on the unit will usually be similar to the model number with numbers following it (ex. ST3400-000).
