Part #:

Model: SN4500

OEM:

Nighthawk

Desc:

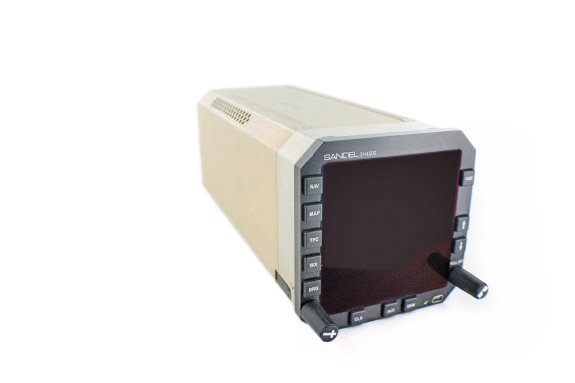

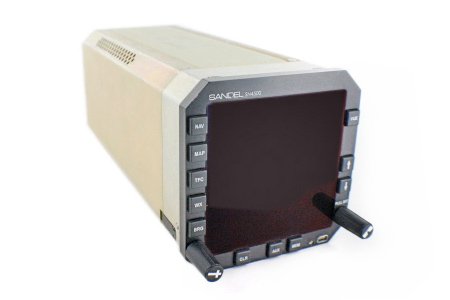

SN4500-000 EHSI, 4", Standard, Black Bezel

Part Number :


SN4500
FEATURES
  • High-Definition Primary Navigation Display
  • FAA certified as a primary navigation display, incorporates overlaid weather, with traffic information from TCAS, TCAD and TAS receivers
  • Improves situational awareness by presenting Compass, Map, Flight Plan an safety systems data
  • Bright, sunlight-readable, high-definition LED-backlit display with 200 pixel per inch resolution
  • Displays vertical deviation from WAAS-enabled GPS receivers
  • Ultra-wide left-to-right/up-down viewing angle
  • Full-color moving map supporting GPS or FMS supplied waypoints, heading, bearing pointers for VOR and ADF, DME display and marker beacons
  • Upgradable system combines navigation with TCAS and datalink weather
  • Internal Jeppesen NavData™ database supplements IFR flight plan data and approach waypoints derived form your GPS receiver's IFR-approved database
  • One-touch toggle between 360° compass and 70° ARC view
  • HDG and CRS sync functions automatically set the heading bug directly to your current heading, or the course pointer to a VOR station
  • Graphical bearing pointers and digital bearings supplied for an selected navigation source
  • Auto-slew function simplifies waypoint sequencing
  • Supports remote heading and course knobs
  • One-touch declutter for each display item
  • Approved for use as a primary navigation display
  • Designed for turbine-powered fixed-wing aircraft and helicopters
  • Compatible with 4-in and 5-in instrument panels

Additional Information: Click Here for Pilot's Guide



SPECIFICATIONS
Dimensions: 9.6" L x 3.97" x 3.97" Bezel: 4.06" x 4.06" Weight: 3.5 lbs (SN4500) 0.5 lbs (bracket)
Power: 22-33 VDC, 28 VDC @ 1.4A (40W) nominal Cooling:  Internal fan requiring ambient air at fan input
Mounting: Standard 4-ATI panel cutout Temperature: -20°C to +70°C
Altitude: +55,000 ft. max. Certification: TSO-C113, TSO C6d, C34e, C35d, C36e, C40c, C41d, C118, DO-160E, DO-178B, DO-254
Heading: Bi-phase stepper, XYZ synchro, ARINC 429
Part Number Primary Attitude Display Description:
90169 SN4500-000, Black
90170 SN4500-001, Gray
90196 SN4500-010, Black, High Vibration
90197 SN4500-011, Gray, High Vibration
90233 SN4500-010N, Black, High Vibration, NVIS, Class B
90234 SN4500-011N, Gray, High Vibration, NVS, Class B



90169-A
- SN4500-000 EHSI, 4", Standard, Black Bezel
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90170-A
- SN4500-001 EHSI, 4", Standard, Gray Bezel
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90196-A
- SN4500-010 EHSI, 4", High Vibration, Black Bezel

NSN: 6605-01-616-3281

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90197-A
- SN4500-011 EHSI, 4", High Vibration, Gray Bezel
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90233-A
- SN4500-010N EHSI, 4", High Vibration, Black, NVIS
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90234-A
- SN4500-011N EHSI, 4", High Vibration, Gray, NVIS
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SN4500-000
- EHSI, 4", Standard, Black bezel

NSN: 6605-01-565-5388

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
SN4500-001
- EHSI, 4", Standard, Gray Bezel
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SN4500-010
- EHSI, 4", High Vibration, Black Bezel

NSN: 6605-01-616-3281

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SN4500-010N
- EHSI, 4", High Vibration, Black, NVIS

NSN: 6605-01-580-0646

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SN4500-011
- EHSI, 4", High Vibration, Gray Bezel
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SN4500-011N
- EHSI, 4", High Vibration, Gray, NVIS
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Yes, Sandel has recently released a service bulletin addressing this issue. The problem has been traced to improper manufacturing tolerances used in the installation of a plastic polarizer in optical system, which does not meet published specifications. Sandel has stated that this problem does not present a flight safety concern and that it is only a cosmetic defect. This service bulletin applies to all serial numbers, shipped prior to August 24, 2009.

A glass polarizer has been designed as a replacement that does not the present the discoloration problem. This part can be retrofitted by the factory into any LED backlit unit.

Identical service bulletins on this problem have also been issued for the SA4550, SN4500 and the SN3500.

Similar to other manufacturers, the ordering or catalog part number is different than the part number actually printed on the physical unit. Sandel uses a numbering scheme for ordering new systems that begins with 5 numbers (ex. 90131). However, this part number is not on the actual dataplate of the unit. The part number on the unit will usually be similar to the model number with numbers following it (ex. ST3400-000).
Sandel has introduced Reversionary Attitude for the SN3500 and SN4500 Primary Navigation Displays. With this new safety feature, you can call up an attitude display on the SN3500/SN4500 at the flip of a switch while retaining heading and navigational information. Attitude information is provided by Sandel's solid-state SG120 AHRS.

The Reversionary Attitude feature is now available for the SN3500 and SN4500. Upgrade requires a Sandel SG102 or other suitable AHRS. SN3500 units with serial number below 2000 will require an upgrade to LED backlighting.
