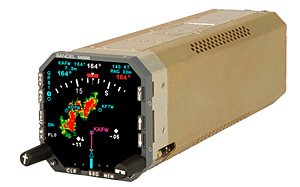

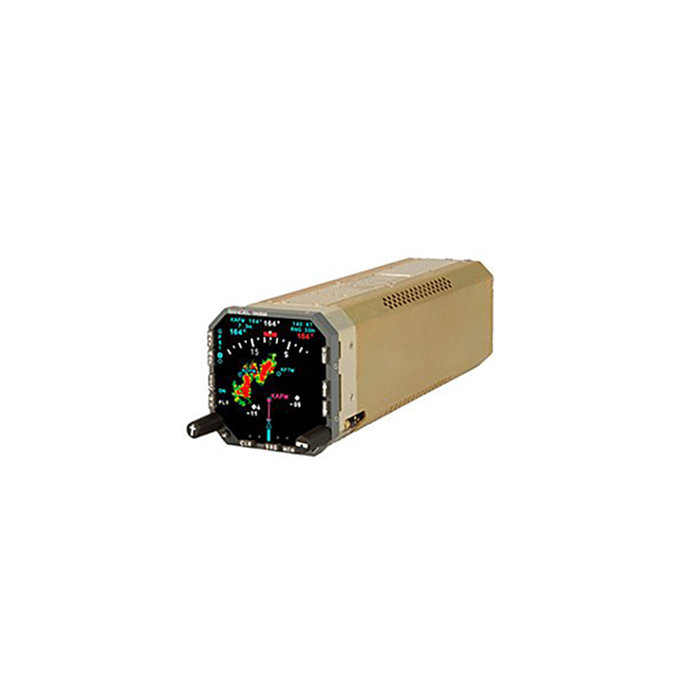

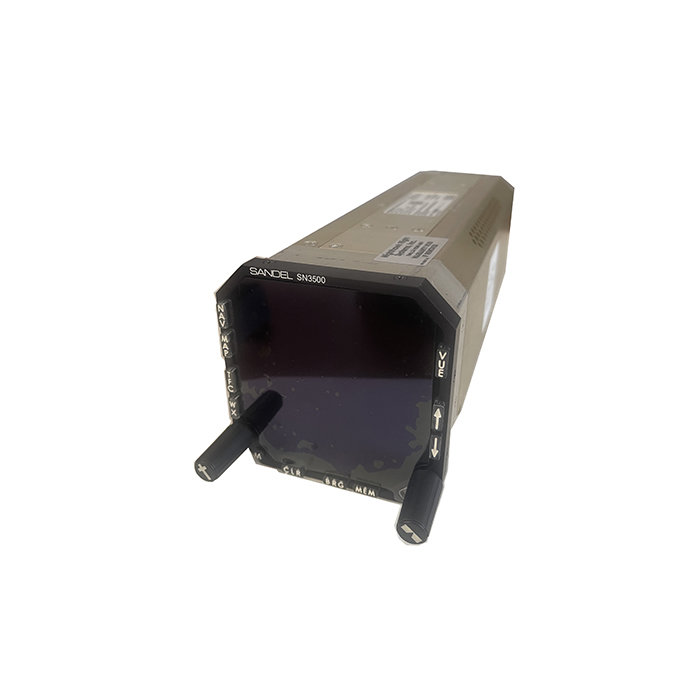

Picture of product SN3500

Part #:

Model: SN3500

OEM:

Nighthawk

Desc:

SN3500-002 Electronic HSI (Black)

Part Number :


SN3500
FEATURES
  • Full-color moving map Nav
  • Sunlight-readable display with full 360-degree viewing angle (180 right, 180 left)
  • TSOd and STC approved for use as a primary heading and Nav display
  • Internal Jeppesen NavData database supplements IFR flight plans
  • One-Touch Toggle Between 360 degree compass and 70 degree ARC view
  • Drop-in 3-ATI size with 4-in. equivalent screen (note: mounting rack differs from original SN3308 EHSI)
  • Upgradeable EHSI with traffic and WSI datalink weather options
  • HDG & CRS Sync function automatically sets the heading bug directly to current heading or the course pointer to a VOR station
  • Auto-Slew function simplifies waypoint sequencing and Direct-To GPS navigation allowing the pilot to fly an entire GPS flight plan hands free
  • Graphical bearing pointers and digital bearings supplied for any selected nav source
  • MEM feature allows pilot to pre-configure two separate situational views and toggle between them with a single keystroke
  • One-touch declutter for each display item
  • High reliability with analog and digital interface flexibility
  • Inputs for GPS waypoints, DG, VOR, ADF, DME, marker beacons and WX-500 Stormscope®
  • Real-Time Map Technology for instantaneous tracking
  • High VibrationH version meets military specifications for vibration resistance
  • Upgrade available to add WSI datalink weather interface (P/N 90130-WSI $1600)
  • Upgrade available to add traffic display interface (P/N 90130-TFC $2500)
  • Worldwide Airnav Database available for additional $150
*Note: Original SN3308 EHSI units cannot be upgraded to the SN3500Additional Information: Click Here for Pilot's Guide

SPECIFICATIONS
Dimensions: 3.165 " H x 3.165" W x 9.80" D Weight: 3.0 lbs.
Power: 22-33 VDC @ 3.2A max (35 W) 27.5 VDC @ 1.5A nominal Cooling: Internal fan requiring ambient air at fan input
TSO: C113 Mounting: Standard 3-ATI, requires 10.65 depth from surface of panel
GPS Interface: ARINC 429, RS-232, and RS-422 Heading Interface: Bi-phase stepper (Mid-Continent 4305 / King KG-102A XYZ synchro (ARINC 407) ARINC 429
Flux Gate Interface: Standard 400Hz XYZ 3-wire interface with external excitation Nav Interface: Analog and ARINC 429
DME Interface: 2 King serial or ARINC 568 digital (KN-62/64, KN-63 1 Analog DME input (40 mV/nm) ADF Interface: SIN/COS, Synchro and ARINC 429
Composite Nav Interface: 2 ARINC 0.5V inputs, internal nav converter Marker Beacon Interface: 3 discrete inputs
Switch/Annunciators Interface: Discrete and ARINC 429 Stormscope Interface: L3 WX-500
Part Number Electronic HSI Description:
SN3500-000 Black bezel, Military, High Vibration
SN3500-001 Gray bezel, Military, High Vibration
SN3500-002 Black bezel
SN3500-003 Gray bezel
SN3500-004 Black bezel, High Vibration
SN3500-005 Gray bezel, High Vibration
SN3500-010N Black, High Vibration NVIS, Class B
SN3500-011N Gray, High Vibration NVIS, Class B



90165-C
- SN3500-002 Electronic HSI (Black)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90165U
- LED Upgrade
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90166-C
- SN3500-003 Electronic HSI (Gray)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90167-C
- SN3500-004 Electronic HSI (Black, High Vibration)

NSN: 6605-01-618-5329

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90168-C
- SN3500-005 Electronic HSI (Gray, High Vibration)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90231-A
- SN3500-010N EHSI (Black, High Vibration NVIS)

NSN: 6605-01-597-4616

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90232-A
- SN3500-011N Gray, High Vibration NVIS, C
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SN3500-002
- EHSI (Black Bezel)

NSN: 6610-01-692-0573

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SN3500-003
- EHSI (Gray Bezel)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SN3500-004
- EHSI (Black, High Vibration)

NSN: 6605-01-618-5329

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SN3500-005
- EHSI (Gray, High Vibration)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SN3500-010N
- EHSI (Black, High Vibration NVIS)

NSN: 6605-01-597-4616

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SN3500-011N
- EHSI (Gray, High Vibration NVIS)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

At this time, the Garmin 400W/500W series WAAS units are approved for interface to the following EFIS systems:

Honeywell EFIS 40/50 with the SG 465 symbol generator with the following limitation: No vertical guidance is provided for GPS approaches.

Sandel SN3308 with the following limitation: GPS lateral and vertical guidance is provided using the analog interface.

Sandel SN3500 with the following limitation: Vertical guidance is provided for GPS approaches.

This is specified in the latest Garmin 400W series installation manual P/N 190-00356-02 Rev. C, dated April 2007.
Many avionics systems require a configuration or setup process. This process is required to interface certain avionics systems to other systems in the aircraft that will be inputting or outputting information to and from these systems. Some examples of systems that require a configuration or setup process include:

Autopilot
EFIS
GPS
EGPWS
EHSI
RADAR
TAWS
TCAS


In addition, most newer technology or solid state systems require configuration via computer interface of some type. A qualified avionics technician should always refer to the appropriate manufacturer's installation manual for complete information and instructions.

Yes, Sandel has recently released a service bulletin addressing this issue. The problem has been traced to improper manufacturing tolerances used in the installation of a plastic polarizer in optical system, which does not meet published specifications. Sandel has stated that this problem does not present a flight safety concern and that it is only a cosmetic defect. This service bulletin applies to all serial numbers, shipped prior to August 24, 2009.

A glass polarizer has been designed as a replacement that does not the present the discoloration problem. This part can be retrofitted by the factory into any LED backlit unit.

Identical service bulletins on this problem have also been issued for the SA4550, SN4500 and the SN3500.

Similar to other manufacturers, the ordering or catalog part number is different than the part number actually printed on the physical unit. Sandel uses a numbering scheme for ordering new systems that begins with 5 numbers (ex. 90131). However, this part number is not on the actual dataplate of the unit. The part number on the unit will usually be similar to the model number with numbers following it (ex. ST3400-000).
Yes, an LED upgrade is available for the Sandel SN3500 EHSI.

Certain original production units of the SN3500 do not include the LED backlight. The upgrade incorporates an LED backlight with 10,000 hour minimum MTBF. Sandel offers the LED upgrade for various prices. $1500 if the unit is under warranty and $2000 if it is not under warranty. Units with serial number format of 5-XXXX were manufactured with the LED already incorporated.
Sandel has introduced Reversionary Attitude for the SN3500 and SN4500 Primary Navigation Displays. With this new safety feature, you can call up an attitude display on the SN3500/SN4500 at the flip of a switch while retaining heading and navigational information. Attitude information is provided by Sandel's solid-state SG120 AHRS.

The Reversionary Attitude feature is now available for the SN3500 and SN4500. Upgrade requires a Sandel SG102 or other suitable AHRS. SN3500 units with serial number below 2000 will require an upgrade to LED backlighting.
