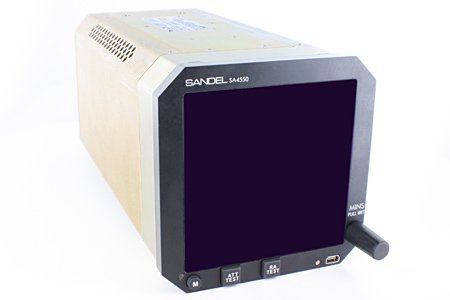

Picture of product SA4550

Part #:

Model: SA4550

OEM:

Nighthawk

Desc:

Electronic ADI (4")

Part Number :


SA4550
FEATURES
  • High-Definition Primary Attitude Display
  • Featuring an ultra-wide viewing angle, 180° in both horizontal/vertical axes
  • The built-in custom I/O enables the unit to interface with aircraft avionics using existing wiring harnesses
  • Flight director command bards, pilot-configurable for toggling between single and dual cue presentation
  • Glideslope and Localizer
  • Fast/Slow
  • Radar Altitude
  • Radar altitude minimum/decision height setting
  • Electronic slip/skid driven by internal accelerometer
  • Attitude comparator system interface
  • On-screen annunciators
  • MTBF in excess of 10,000 hours
  • LED display with resolution of 200 pixels per inch
  • Ideal for corporate and air transport aircraft
  • Update with minimum disruption
  • Cost-effective way to enhance both the aircraft operational and residual value



SPECIFICATIONS
Dimensions: AD-550 retrofit version 7.81" L x 3.97" x 3.97" Bezel: 4.06" x 4.06" AD-600 & AD-650 retrofit 7.51" L x 3.97" x 3.97" Bezel: 4.06" x 4.06" Weight: 3.4 lbs (SA4550) 0.5 lbs (bracket)
Power: 20-33 VDC, 28 VDC @ 1.4A (40W) nominal Cooling: Internal fan requiring ambient air at fan input
Mounting: Standard 4-ATI panel cutout Temperature: -20°C to +70°C
Altitude: +55,000 ft. max. Certification: TSO-C113, TSO-C3d, TSO-C4c, TSO-C43e, TSO-C36e, TSO-C52b, DO-160E, DO-178B, DO-254
Part Number Primary Attitude Display Description:
90175 SA4550-000, Gray (AD500/550 & HZ-454 Compatible)
90176 SA4550-001, Black (AD500/550 & HZ-454 Compatible)
90177 SA4550-100, Gray (AD600/650 Compatible)
90178 SA4550-101, Black (AD600/650 Compatible)
90185 SA4550-010, Gray, Partial Load Resistors (AD500/550 & HZ-454 Compatible)
90186 SA4550-011, Black, Partial Load Resistors (AD500/550 & HZ-454 Compatible)
90187 SA4550-110, Gray, Partial Load Resistors (AD600/650 Compatible)
90188 SA4550-111, Black, Partial Load Resistors (AD600/650 Compatible)
90189 SA4550-020, Gray, No Load Resistors (AD500/550 & HZ-454 Compatible)
90198 SA4550-040, Gray, High Vibration (AD500/550 & HZ-454 Compatible)
90199 SA4550-041, Black, High Vibration (AD500/550 & HZ-454 Compatible)
90200 SA4550-050, Gray, High Vibration, Partial Load Resistors (AD500/550 & HZ-454)
90201 SA4550-051, Black, High Vibration, Partial Load Resistors (AD500/550 & HZ-454)
90204 SA4550-140, Gray, High Vibration (AD600/650 Compatible)
90205 SA4550-141, Black, High Vibration (AD600/650 Compatible)
90206 SA4550-150, Gray, High Vibration, Partial Load Resistors (AD600/650 Compatible)
90207 SA4550-151, Black, High Vibration, Partial Load Resistors (AD600/650 Compatible)
90210 SA4550-400, Gray (ADI-84/84A Compatible)
90211 SA4550-401, Black (ADI-84/84A Compatible)
90212 SA4550-440, Gray, High Vibration (ADI-84/84A Compatible)
90213 SA4550-441, Black, High Vibration (ADI-84/84A Compatible)
90214 SA4550-500, Gray (ADI-84C/70C Compatible)
90215 SA4550-501, Black (ADI-84C/70C Compatible)
90216 SA4550-540, Gray, High Vibration (ADI-84C/70C Compatible)
90217 SA4550-541, Black, High Vibration (ADI-84C/70C Compatible)
90218 SA4550-600, Gray (ADI-329B-7Rx Compatible)
90219 SA4550-601, Black (ADI-329B-7Rx Compatible)
90226 SA4550-700, Gray (KCI-310/310A Compatible)
90227 SA4550-701, Black (KCI-310/310A Compatible)
90235 SA4550-040N, Gray, High Vibration, NVIS, Class B (AD500/550 & HZ-454 Compatible)
90236 SA4550-041N, Black, High Vibration, NVIS, Class B (AD500/550 & HZ-454 Compatible)
90248 SA4550-640, Gray, High Vibration (ADI-329B-7Rx Compatible)
90249 SA4550-641, Black, High Vibration (ADI-329B-7Rx Compatible)



90175-A
- SA4550-000 Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90177-A
- SA4550-100 Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90186-A
- SA4550-011 Primary Attitude Display - Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90187-A
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90207-A
- Primary Attitude Display - Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90210-A
- SA4550-400 Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90216-A
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90227-A
- SA4550-701 Primary Attitude Display - Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90249-A
- SA4550-641 Primary Attitude Display - Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-001
- Primary Attitude Display - Black
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
SA4550-010
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-011
- Primary Attitude Display - Black

NSN: 6610-01-565-7344

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-020
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-040
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-040N
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-041N
- Primary Attitude Display - Black

NSN: 6610-01-580-0766

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-050
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-051
- Primary Attitude Display - Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-101
- Primary Flight Display, Black AD600/650
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-110
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-111
- Primary Attitude Display - Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-140
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-141
- Primary Attitude Display - Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-150
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-151
- Primary Attitude Display - Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-401
- Primary Attitude Display, SA4550
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-440
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-441
- Primary Attitude Display, Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-500
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-501
- Primary Attitude Display - Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-540
- Primary Attitude Display - Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-541
- Primary Attitude Display - Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-600
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-601
- Primary Attitude Display - Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-640
- Primary Attitude Display - Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
SA4550-700
- Primary Attitude Display, Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Similar to other manufacturers, the ordering or catalog part number is different than the part number actually printed on the physical unit. Sandel uses a numbering scheme for ordering new systems that begins with 5 numbers (ex. 90131). However, this part number is not on the actual dataplate of the unit. The part number on the unit will usually be similar to the model number with numbers following it (ex. ST3400-000).
