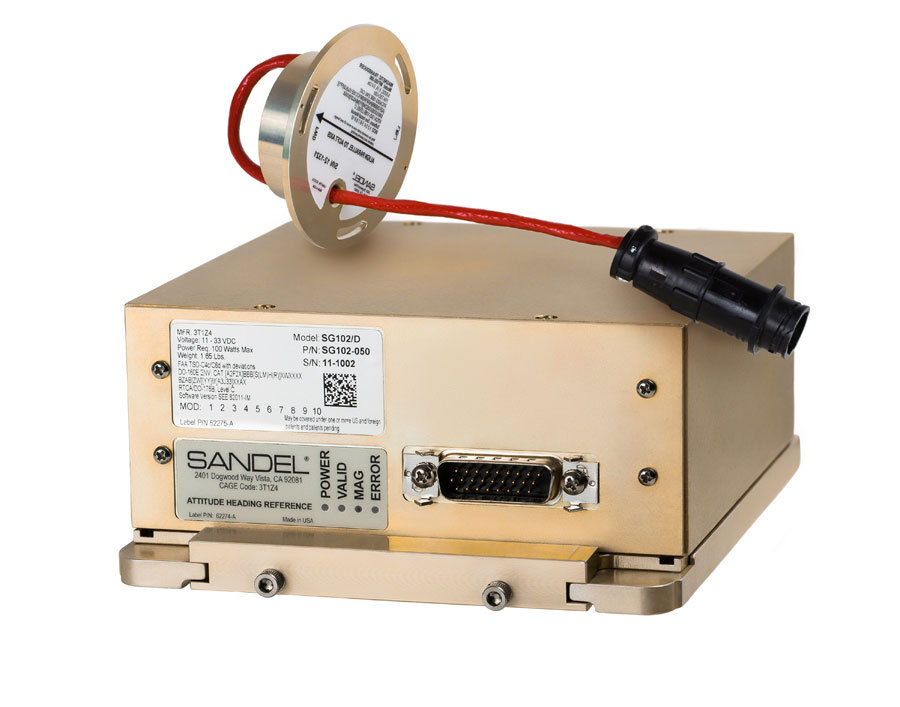

Picture of product SG-102/D

Part #:

Model: SG-102/D

OEM:

Nighthawk

Desc:

Digital Attitude Heading Reference System (AHRS)

Part Number :


SG102/D
FEATURES
  • Digital Attitude Heading Reference System (AHRS)
  • Identical to the SG102 (MOD2) without the analog interfaces
  • Light weight & cost effective
  • Designed for non-KG102 equipped aircraft
  • Ideal for new equipment installs
  • Improved initialization time of one minute, it's 3x faster than the original SG102
  • Selectable low- and high-speed ARINC 429 output, allowing for additional interface options such as radar systems, satellite communication antennas & FLIR stabilization
  • Certified for primary heading reference and secondary attitude
  • Compatible with digital heading interfaces
  • Pitch & roll output for auxiliary applications requiring stabilization
  • Replacement Directional Gyro for Piston, Turbine & Rotorcraft Aircraft (see part number chart below)
  • Certification:
    • TSO C4c, Bank and Pitch Instruments
    • TSO C6d, Direction Instrument, Magnetic (Gyroscopically Stabilized)
    • EASA ETSO, C4c, C64
    • RTCA/DO-178B, Software Level C
    • RTCA/DO-160E Env. Cat.
      • SG102-050: [A2F2X]BBB[S(LM)H(R)]XWXXXXBZAB[ZW][YY]M[A3J33]XXAX
      • SG102-150: [A2F2X]BBB[H(R)R(BB1CC1)]XWXXXXBZAB[ZW][YY]M[A3J33]XXAX
      • SG102-250: [A2F2X]BBB[R(G)U2(FF1)]XWXXXXBZAB[ZW][YY]M[A3J33]XXAX
SPECIFICATIONS
Dimensions: 5.0" x 6.3" x 2.53" (SG102/D)
3.4" Diameter x 1" H (MT102)
5" x 6.1" x 0.3" (SG102 Mounting Base)
Weight: 1.65 lbs including connectors (SG102/D)
0.61 lbs (MT102)
0.61 lbs (SG102 Mounting Base)
Power: 11-33VDC @ nominal 8 watts
Startup current: Approx 18 watts 1 minute
MTBF: >10,000 hours, calculated
Temperature: -55°C to +70°C Altitude: +55,000 feet max
Cooling: None Performance: Initialization time: Approx 1 minute nominal
Accuracy: Magnetic heading: ± 2° nominal
Pitch & Roll: 0.25° typical
MTBF: 10,000 hours, calculated  Body Rate limits: ± 250°/sec
interfaces: ARINC 429: Single output, Low or high speed / Magnetic Heading, Pitch & Roll (Not certified for primary attitude), Body Acceleration
RS232: Stormscope format
Part Number: Description:
SG102-050 Fixed-Wing Piston Aircraft
SG102-150 Fixed-Wing Turbine Aircraft
SG102-250 High-Vibration Version for Helicopters



90267-A
- Digital AHRS w/ MT102 (Piston)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90269-A
- SG102-150 Digital AHRS w/ MT102 (Turbine)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
90271-A
- SG102-250 Digital AHRS w/ MT102 (Helicopter)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
