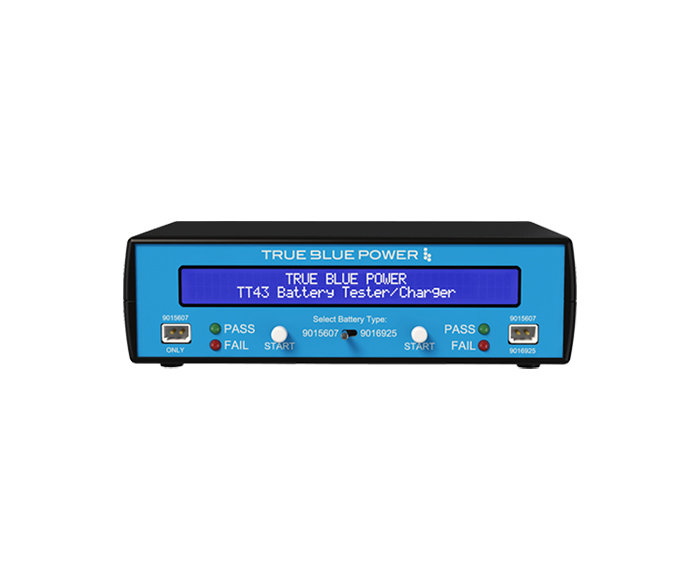

Picture of product TT43

Part #: 6430043-1

Model: TT43

NSN:

6130-01-641-8265

OEM:

Mid-Continent

Desc:

Battery Tester / Charger

Part Number :



TT43



FEATURES

  • TT43 Battery Tester and Charger is designed to charge and test the removable battery for the Mid-Continent Instruments and Avionics 4300 Series
  • Recharges batteries in five hours or less and can test and charge two batteries simultaneously
  • Alphanumeric dot matrix LCD display provides dynamic test status and measurements
  • Test/Charge one or two batteries simultaneously in less than 5 hours
  • Microprocessor control adjusts test to accurately compensate for acceptable battery variation
  • Bright LEDs provide quick reference pass/fail results
  • Can float charge batteries indefinitely to maintain an always-ready state
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty
  • Tests and charges all Mid-Continent lead-acid battery packs:  4300 Series (0.5Ah battery), TS420 (0.5Ah battery), TS420-1 (2.5Ah battery)
  • Unit Under Test (UUT) (6430043-1)
  • AC Adapter (24VDC) (9015904)
  • Regulated DC Power Supply (0-30V, 1A)
  • DC Ammeter
  • DC Voltmeter
  • 23 ohm power resistor rated greater than 20 watts



SPECIFICATIONS

POWER SUPPLY: Wall-outlet AC Adapter included BATTERY TYPE: Switch allows for selection of 0.5Ah or 2.5Ah battery
Battery Detection: Load sensing recognizes batteries when connected to the tester pROTECTION: Short-circuit protection and time out for failed batteries
AC Adapter  Input (POWER): 90-264VAC, 50/60Hz, 30W. Output: 24VDC, 1.25A
Part Number: Description:
6430043-1 Battery Tester / Charger



6430043-1
- Battery Tester / Charger

NSN: 6130-01-641-8265
