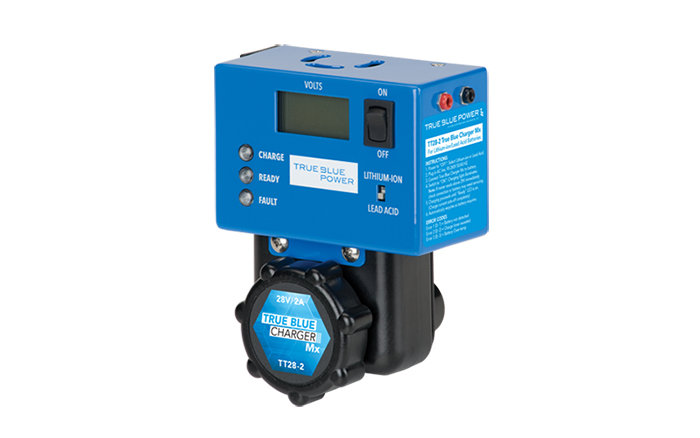

Picture of product TT28-2

Part #: 282-101

Model: TT28-2

OEM:

Mid-Continent

Desc:

Battery Tester / Charger

Part Number :



TT28-2



FEATURES

  • The intelligent True Blue Charger Mx extends battery life
  • Charges and maintains sealed lead-acid and all True Blue Power lithium-ion aircraft batteries
  • Automatic charging for lithium-ion and sealed lead-acid aircraft batteries
  • Power Output: 2.5 amps charge current limit
  • Alphanumeric LCD display provides battery voltage and indications
  • Charge, Ready and Fault LED indicators
  • Continuously monitors and charges to maintain a quick-ready state
  • One-year limited warranty





SPECIFICATIONS
Input Voltage: 90 – 264 VAC, ±10%, 47 – 63 Hz, 1A (maximum) Input Connector: IEC60320-C13
BATTERY CHARGE VOLTAGE: Lithium-ion 28.8V (maximum), Lead-acid 28.6V (maximum) weight: 2 lbs (0.9 kg)
Dimensions: 4.33” W x 5.9” H x 3.8” D Operating Temperature: -20°C to +50°C (-4°F to +122°F)
Battery Connector: MS-3509 compatible Storage Temperature: -28°C to +70°C (-18°F to +158°F)
Dimensions: 12.5" L x 14.7" W x 8.8" H Timing Accuracy: ±5% of nominal time
Part Number: Description:
282-101 Battery Tester / Charger



FAA TSO C179a certified EASA ETSO C179a certified ANAC TSO C179a certified Part 23 AML STC certified RTCA/DO-160F qualified RTCA/DO-311 qualified
282-101
- Battery Tester / Charger
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
