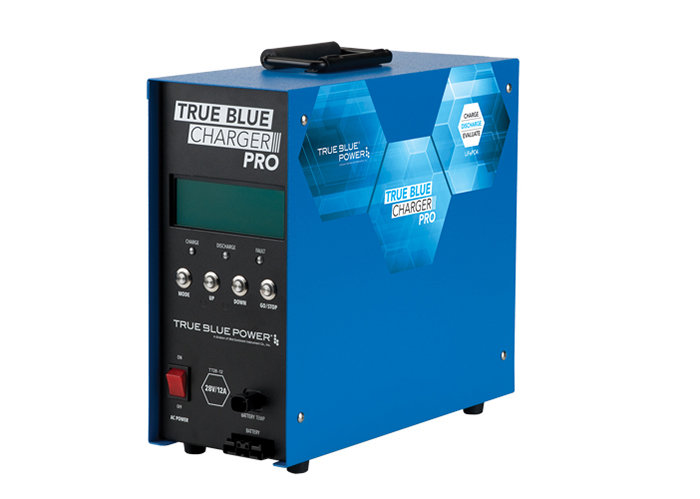

Picture of product TT28-12

Part #: ACM-1260-101

Model: TT28-12

OEM:

Mid-Continent

Desc:

Battery Tester / Charger

Part Number :



TT28-12



FEATURES

  • Specifically engineered to charge, discharge and test True Blue Power lithium-ion aircraft batteries
  • Variable Power: 12.5 amps charge (nominal); 60 amps discharge (maximum)
  • Alphanumeric LCD display provides battery mode, current, voltage, temperature and timer
  • Charge, Discharge and Fault LED indicators
  • One-year limited warranty





SPECIFICATIONS
Input Voltage: 90 – 132 VAC or 180 – 264 VAC (switch selected) 47 – 63 Hz Input power: 8.4A at 115 VAC, 4.35A at 23 VAC, 15A Circuit Breaker
BATTERY CHARGE VOLTAGE: Lithium-ion 28.8V (maximum) weight: 29.5 lbs (13.4 kg)
Dimensions: 6.5” W x 14.5” H x 15” D Operating Temperature: 0°C to +55°C (32°F to 131°F)
Display Measurement: To 0.1 volts, 0.1 amps Storage Temperature: -40°C to +80°C (-40°F to +176°F)
Display Accuracy: ±0.2 volts, ±0.2 amps Battery Connectors: Compatible with MS-3509, 5/16” ring terminals, alligator clamps and temperature cables
Part Number: Description:
ACM-1260-101 Battery Tester / Charger



FAA TSO C179a certified EASA ETSO C179a certified ANAC TSO C179a certified Part 23 AML STC certified RTCA/DO-160F qualified RTCA/DO-311 qualified
