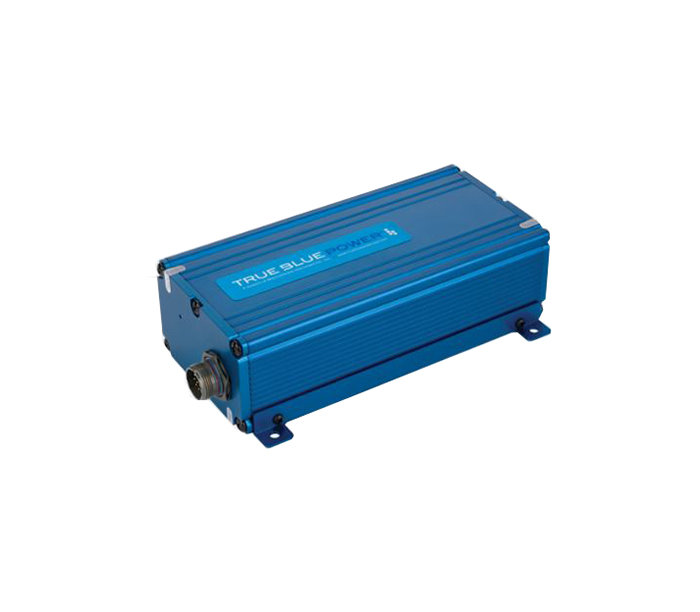

Picture of product TS60

Part #:

Model: TS60

OEM:

Mid-Continent

Part Number :



TS60

FEATURES
  • The TS60 Series Emergency Battery Power Supply features advanced NanoPhosphate® lithium-ion cell chemistry that offers distinct advantages over older, nickel-cadmium designs.
  • This includes significantly reduced maintenance costs, drastically improved life expectancy, low state-of-charge indication and an on-unit visual status indicator
  • Provides a constant 6.6 VDC power for emergency lighting systems in the event of electrical system failure
  • Utilizes advanced NanoPhosphate® lithium-ion cell chemistry
  • Maintains full charge by recharging during normal flight operations
  • Recharges 4x faster than competing units
  • Two-year maintenance schedule
  • 6 – 8 year life expectancy
  • Designed and built in Wichita, Kansas USA
  • Two-year limited warranty
  • FAA TSO Certified




SPECIFICATIONS
Dimensions: 2.60” H x 8.75” L x 5.35” W (66.04mm x 222.25mm x 135.89mm) Weight: TS60-1, TS60-2: 3.8 lbs (1.72 kg)        TS60-3, TS60-4:  4.0 lbs (1.81 kg)
input voltage: 17-32 VDC  Output power: TS60-1: 6.6 VDC nominal 4 amps max, TS60-2 6.6 VDC nominal 7 amps max, TS60-3: 6.6 VDC nominal 4 amps max, TS60-4: 6.6 VDC nominal 7 amps max
Output current: 575A continuous, 1440A max protection: Overcharged, over-discharge, over-current, short circuit, and temperature monitoring
mating connector: (TS60-1 M83723/74W1212N ) (TS60-2 M83723/85W1212N) (TS60-3 M83723/74W1212N) (TS60-4 M83723/85W1212N) Certification: FAA TSO-C179b (Class A-4B),RTCA DO-311A, RTCA DO-160G, RTCA DO-178C DAL A, UNDOT/IATA
capacity: (TS60-1, TS60-2:  28 Watt-hour) (TS60-3, TS60-4: 43 Watt-hour) battery life expectancy: 6-8 years
direct replacement: TS60-1: Honeywell Grimes 60-3844-( ), TS60-2:  Honeywell Grimes 60-5025-( ), TS60-3:  Honeywell Grimes 60-3844-( ), TS60-4: Honeywell Grimes 60-5025-( )
Part Number: Description:
6430060-1 TS60 Emergency Battery Power Supply
6430060-2 TS60 Emergency Battery Power Supply
6430060-3 TS60 Emergency Battery Power Supply
6430060-4 TS60 Emergency Battery Power Supply



°
6430060-1
- Emergency Battery Power Supply (6.6VDC, 32W)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430060-2
- Emergency Battery Power Supply (6.6VDC, 32W)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430060-3
- Emergency Battery Power Supply (6.6VDC, 48W)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430060-4
- Emergency Battery Power Supply (6.6VDC, 48W)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
