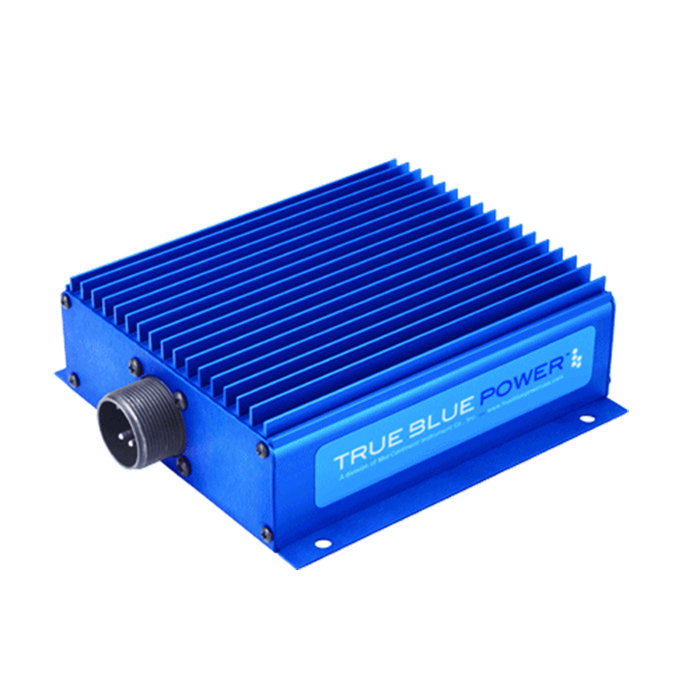

Picture of product TI250

Part #: 6430250-1

Model: TI250

NSN:

6130-01-687-5405

OEM:

Mid-Continent

Desc:

DC to AC Adapter

Part Number :





FEATURES
  • Supplies 250 watts of power
  • Compact design — lighter and smaller than competing inverters
  • Lightweight — 2.2 to 2.6 lbs
  • 87 – 90% efficiency
  • Input transient, overload, short-circuit protection — up to 150% of rated load without damage
  • Ground fault interrupter (GFI) protection
  • Remote On/Off
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty
  • FAA TSO certified



SPECIFICATIONS

Output Voltage: 115 VAC ± 3% Output Frequency: 60 Hz ± 0.1%
Weight: 2.2 lbs Temperature: –65°F to +160°F (-55°C to +70°C)
Case: Anodized aluminum extrusion, blue Certification: FAA TSO-C73 certified, RTCA DO-160G qualified
Part Number: Description:
6430250-1 DC to AC Adapter



6430250-1
- DC to AC Inverter

NSN: 6130-01-687-5405

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
