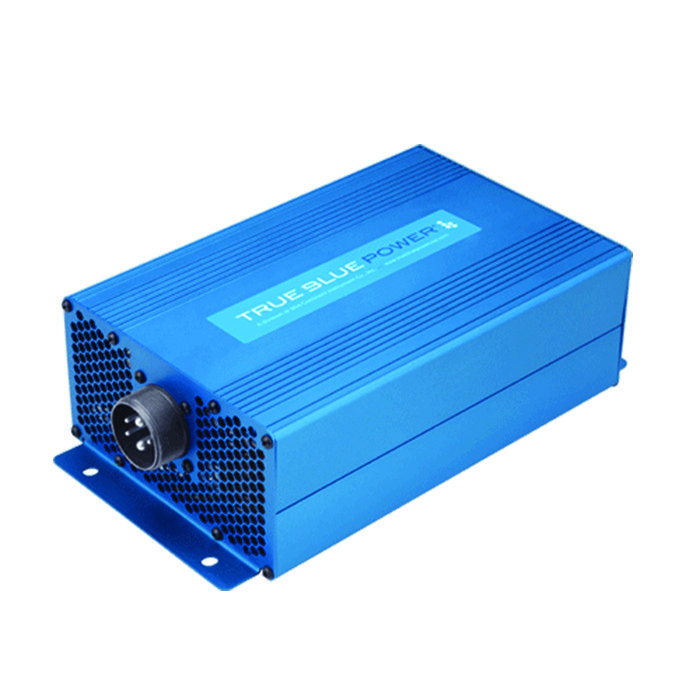

Picture of product TI1204

Part #: 6431200-6

Model: TI1204

OEM:

Mid-Continent

Part Number :


TI1204

FEATURES
  • Supplies 1200 watts of power to multiple cabin accessories, galley equipment and entertainment systems
  • Ideal for use in emergency medical service, law enforcement and VIP cabin configurations
  • Compact design — 30% smaller than competing products
  • Lightweight — 7.3 lbs
  • 85 – 90% efficient
  • Input transient, overload and short-circuit protection — up to 150% of rated load without damage
  • Remote On/Off optional
  • FAA TSO-C73 certified
  • EASA ETSO-C73 certified
  • RTCA DO-160G qualified
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty



SPECIFICATIONS

Dimensions (WITHOUT CONNECTOR): 12.00 inches long x 6.32 inches wide x 3.45 inches high Weight: 7.25 pounds
INPUT VOLTAGE: 20-36 VDC Altitude: 55,000 ft.
INPUT CURRENT: 60A at 28 VDC Input Temperature: -67°F to +158°F (-55°C to +70°C)
Output voltage: 115 VAC ± 3% output power: 1200 VA
OUTPUT FREQUENCY: 400 Hz ± 0.1% output waveform: Single phase, true sine wave, < 3% total distortion
humidity: Tested to greater than 95% for days, temperature cycle of 75°F to 160°F INTEGRAL COOLING: Dual, electronically-controlled brushless fans
mating connector: MD3106A24-12S, MS3057-16A (Cable clamp / backshell) case: Anodized aluminum extrusion, blue
certification: FAA TSO-C73 certified, EASA ETSO-C73 certified, RTCA DO-160G qualified EFFICIENCY: 88% nominal
input power: 60 amps; 0.2A at no load total harmonic distortion: <3.5



Part Number Description:
6431200-6 Static Electrical Power Inverter







6431200-6
- Static Inverter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
