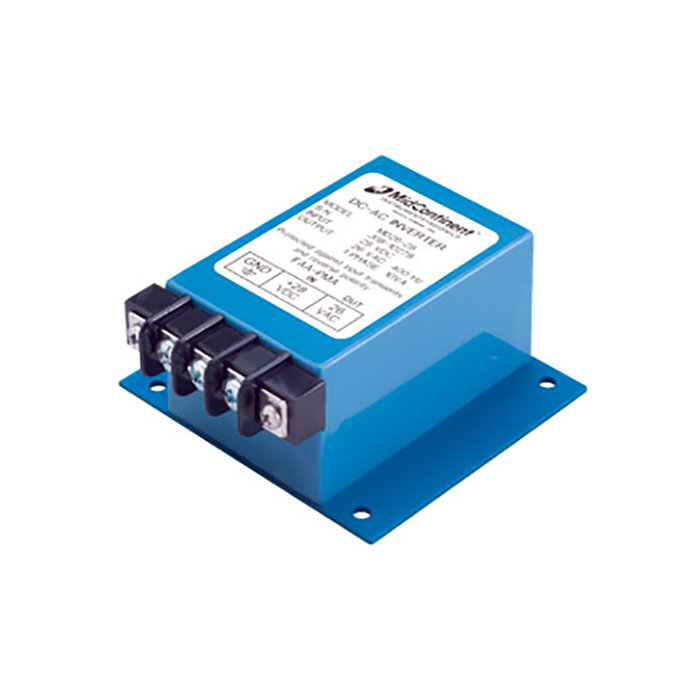

Picture of product TI10

Part #: MD26-28

Model: TI10

NSN:

6130-01-563-6278

OEM:

Mid-Continent

Part Number :



FEATURES

  • Compatible with 14 and 28 VDC aircraft (11 – 40 VDC input range)
  • Pure sine wave output 26 VAC, 400 Hz, 10 VA
  • Provides reference and/or power for bootstrap synchros, weather radar systems, GAD 42, GAD 43 and others
  • Transient and reverse polarity protected
  • Small size (1.5 x 2.8 x 3.0 inches)
  • Lightweight (0.28 lbs)
  • FAA PMA approved
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty



SPECIFICATIONS

Temperature: –55°C to +70°C dimensions: 1.5” H x 2.8” L x 3.0” W (approximate)
Humidity: 0 to 95% at 25°C weight: 0.28 lbs
Vibration: .02 in. dbl. ampl., 3g @ 5 to 55 Hz Altitude: –1,000 to +50,000 feet
Mounting: Base mount RF Emissions: RTCA DO-160F, Section 21, Category M
Input Voltage: 11 – 40 VDC Output Voltage: 26 ± 1 VAC, 400 Hz ± 0.5%, single phase
Input Current: 1.7A max (at 11 VDC input, 10 VA load) Output Power: 10 VA Pure sine wave, < 3% distortion
Part Number: Description:
md28-26 Inverter (28VDC to 26VAC)



MD26-28
- Inverter (28VDC to 26VAC)

NSN: 6130-01-563-6278

Price Condition Status
$695.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
