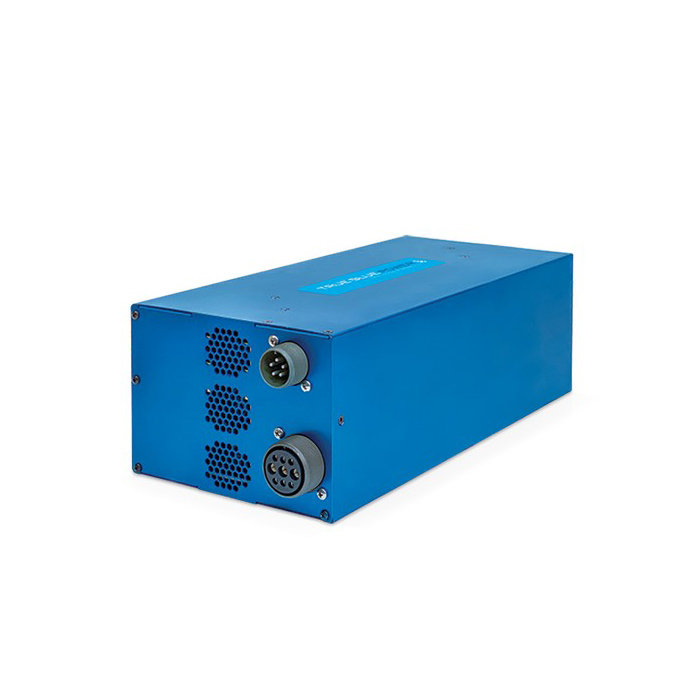

Picture of product TFC4002
Part #: 6434000-2
Model: TFC4002
Desc: AC-to-AC Frequency Converter
OEM: Mid-Continent
Part Number :





FEATURES

  • 4,000 watts of output power
  • 230 VAC, 50 Hz, single phase output voltage
  • 93% efficiency
  • Single phase, pure sine wave < 3% total harmonic distortion output wareform
  • -0.8 to +0.8 power factor
  • Remote On/Off
  • Short circuit, under-voltage, over-voltage, overload (up to 150% for 5 minutes, without damage), DC offset protection



SPECIFICATIONS

Input Voltage: 115/200 VAC 360 – 800 Hz 3-phase Input Phase Current: 13 A
Output Voltage: 230 VAC 50 Hz single phase Output Power: 4,000 watts
Weight: 18.9 lbs (8.57 kg) Altitude: 55,000 feet
Temperature: -40°F to +167°F (-40°C to +75°C) Mating Connector: 9019110-4, 9019507-2
Part Number: Description:
6434000-2 AC-to-AC Frequency Converter





6434000-2
- AC to AC Frequency Converter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
