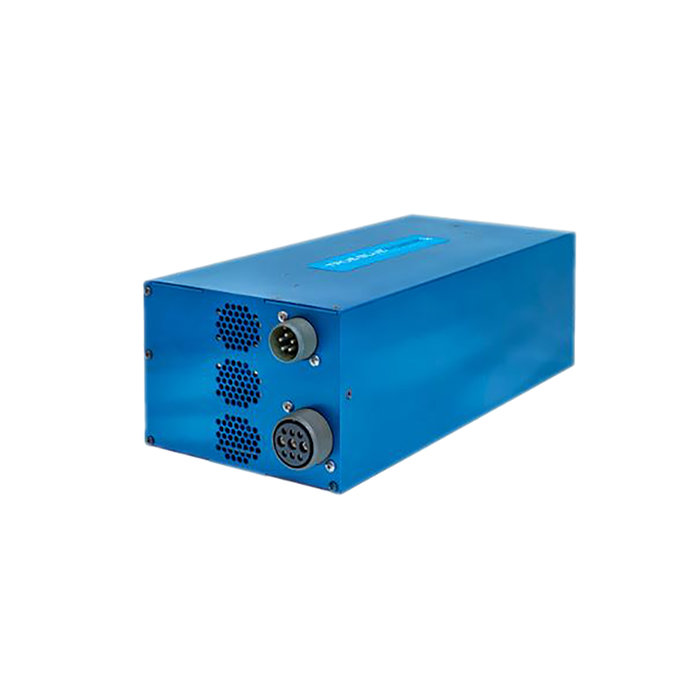

Picture of product TFC4000

Part #: 6434000-1

Model: TFC4000

OEM:

Mid-Continent

Desc:

AC-to-AC Frequency Converter

Part Number :



TFC4000

FEATURES

  • 4,000 watts of output power
  • 13 A input phase current
  • 93% efficiency
  • Single phase, true sine wave < 3% total harmonic distortion output waveform
  • -0.8 to +0.8 power factor
  • Remote On/Off
  • Short circuit, under-voltage, over-voltage, overload (up to 150% for 5 minutes, without damage) protection
  • Two-year limited warranty
  • Certifications :FAA PMA approved, RTCA DO-160G



SPECIFICATIONS

Mating Connector: 9019110-4, 9019507-2 Weight: 19.8 lbs (8.98 kg)
Output Voltage: 115 VAC, 60 Hz, 4 kVA Altitude: 55,000 feet
Output Power: 4,000 watts Temperature: -67°F to +185°F (-55°C to +85°C)
Input Phase Current: 13 A Case: Anodized aluminum, blue
Input Voltage: 115 VAC, 60 Hz,



Part Number: Description:
6434000-1 Frequency Converter



6434000-1
- AC-to-AC Frequency Converter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
