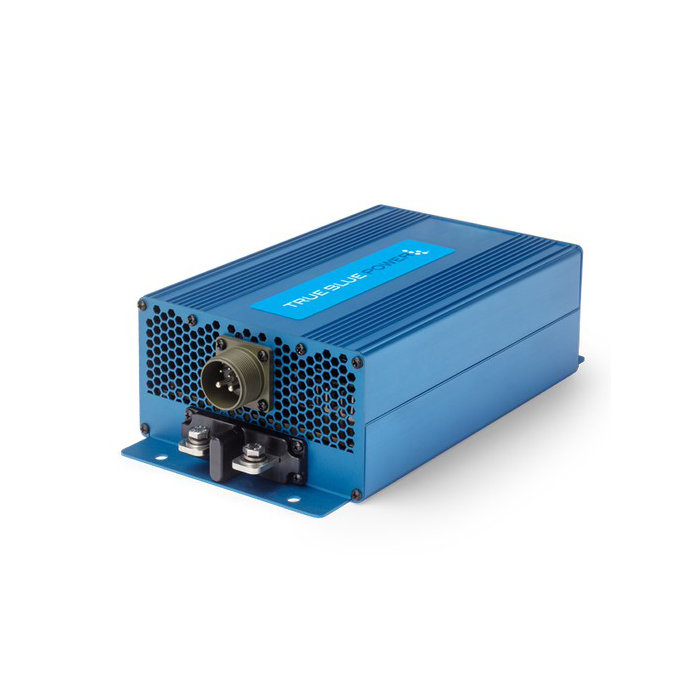

Picture of product TC6500
Part #: 6436500-1
Model: TC6500
Desc: DC-to-DC Voltage Converter
OEM: Mid-Continent
Part Number :





FEATURES

  • High Voltage. High Efficiency. Low Weight.
  • 6,500 watts output power
  • 28.7 VDC ± 0.4 VDC output voltage
  • 96% efficiency
  • Remote control
  • Three brushless, temperature-controlled and speed-controlled fans; Thermostatic On/Off control
  • Up to 110% of rated power without damage overload capacity
  • Input transient, temperature monitoring, short circuit and over current protection



SPECIFICATIONS

Input Voltage: 165 – 320 VDC Input current: 26 A Nominal
Weight: 10.4 lbs (4.7 kg) Dimensions: 6.3”W x 12.0”L x 3.5”H
Output Voltage: 28.7 VDC ± 0.4 VDC Output Power: 6,500 watts
Altitude: 55,000 feet Temperature: -67°F to +158°F (-55°C to +70°C)
Mating Connector: 9019803-8, 9019803-9 Case: Anodized aluminum extrusion, blue



Part Number: Description:
6436500-1 DC-to-DC Voltage Converter





6436500-1
- DC to DC Voltage Converter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
