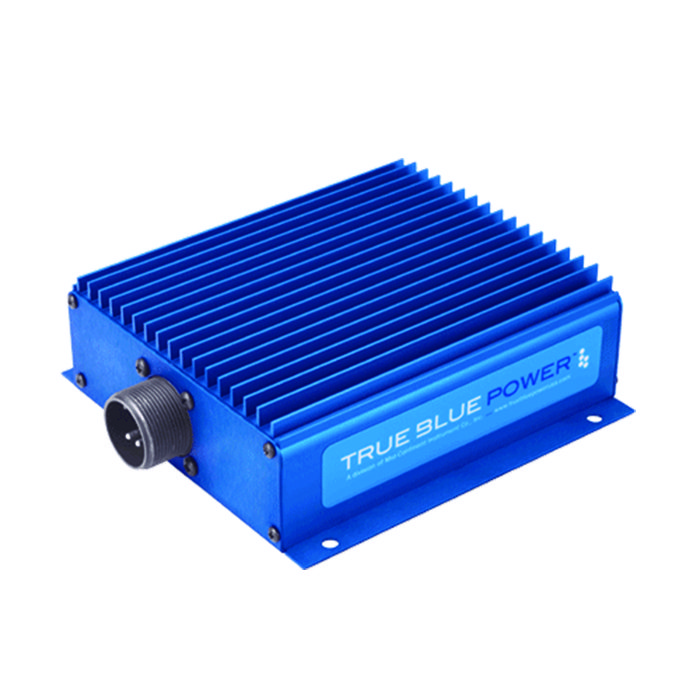

Picture of product TC280

Part #: 6430280-2

Model: TC280

OEM:

Mid-Continent

Desc:

DC to DC Converter

Part Number :





TC280



FEATURES

  • Supplies 280 watts of 28-volt power
  • Lightweight — 2.0 lbs
  • Input transient, overload and short circuit protection, temperature monitoring
  • 88% efficient
  • Remote On/Off
  • No cooling required
  • Can be mounted in the floor, cabin wall or outside the pressure vessel.
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty
  • FAA TSO Certified



SPECIFICATIONS

INPUT VOLTAGE: 22 – 32 VDC INPUT CURRENT: 10.0 A Nominal
OUTPUT VOLTAGE: 5 – 18 VDC adjustable OUTPUT POWER: 280 watts
Input Voltage: 115 ± 10 VAC, 350-800 Hz WEIGHT: 2.0 lbs (0.91 kg)
ALTITUDE: 55,000 ft MATING Connector: MS3106A-18-9S (MCI P/N 9016905-1)
CASE: Anodized aluminum extrusion, blue CERTIFICATION: FAA TSO-C71 certified, RTCA DO-160G qualified
Temperature: -65°F to +160°F (-55°C to +70°C) Input Current: 2.8 A Nominal
Part Number: Description:
6430280-2 DC to DC Converter



6430280-2
- 115 VAC / 350-800 Hz in, 28 VDC out (10A), 280 w
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
