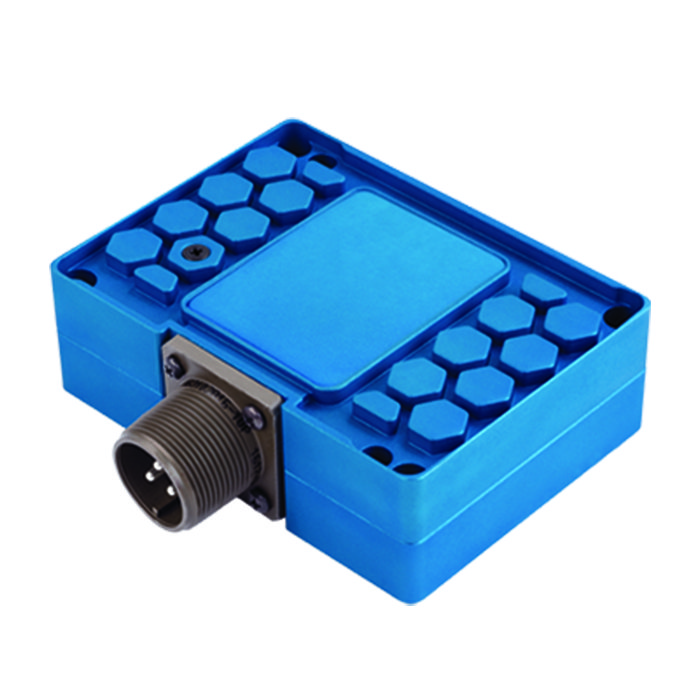

Picture of product TC240

Part #:

Model: TC240

OEM:

Mid-Continent

Part Number :





TC240



FEATURES

  • Supplies 240 watts of DC power
  • Adjustable 5 – 18 VDC output
  • Lightweight — 0.70 lbs
  • Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
  • 95% efficient
  • Remote On/Off (optional)
  • No cooling required
  • Can be mounted in the floor, cabin wall or outside the pressure vessel
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty
  • FAA TSO Certified



SPECIFICATIONS
INPUT VOLTAGE: 22 – 32 VDC INPUT CURRENT: 10.0 A Nominal
OUTPUT VOLTAGE: 5 – 18 VDC adjustable OUTPUT POWER: 120 watts
REGULATIONS: 1% load, 2% temperature WEIGHT: 0.65 lbs (0.29 kg)
ALTITUDE: 55,000 ft MATING Connector: 6430240-1 MCI P/N 9018654 (included), 6430240-2 MCI P/N 9018655 (included)
CASE: Anodized aluminum, blue CERTIFICATION: FAA TSO C71 certified, RTCA DO-160G qualified
Part Number: Description:
6430240-1 DC to DC Converter
6430240-2 DC to DC Converter



6430240-1
- 24-32 VDC in, 5-18 VDC out (18A nominal)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430240-2
- 24-32 VDC in, 5-18 VDC out (18A nominal), 240 w
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
