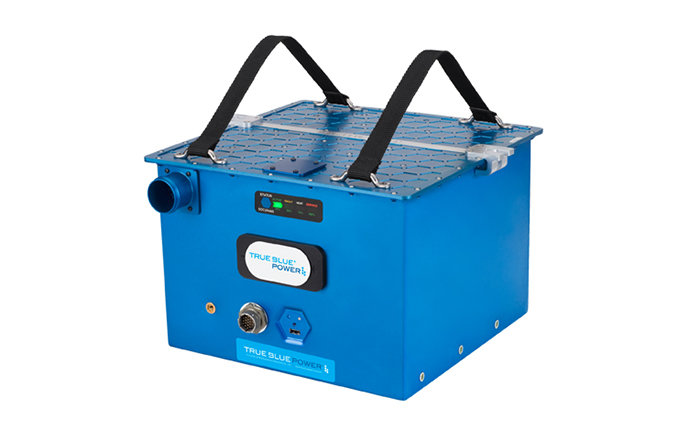

Picture of product TB60

Part #: 6431060-1

Model: TB60

OEM:

Mid-Continent

Desc:

Aviation Battery (28VDC, 60Ah, Lithium-Ion)

Part Number :



TB60



FEATURES

  • 60 amp-hour nominal at 23°C/73°F
  • Weighs 52.9 lbs. — up to 60% less than lead-acid and NiCad solutions
  • Advanced NanoPhosphate lithium-ion cell chemistry
  • Higher voltage during engine start — Less wear, less maintenance and increased useful life
  • Superior high-temperature and cold-weather performance from -40°C to +70°C (-40°F to +158°F)
  • More than 1 amp-hour per pound
  • Automatic internal heater
  • Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
  • ARINC 429, Analog and Discrete communication
  • Built-in Test (BIT) Indicator communicates real-time state-of-charge and state-of-health
  • On-condition maintenance
  • Designed and built in Wichita, Kansas, USA
  • FAA TSO certified
  • Two-year limited warranty
  • Software: version 1.0.2



SPECIFICATIONS
Capacity: 60 amp-hour nominal (at 23°C/73°F) OUTPUT CURRENT: 425A continuous (1500A max)
output VOLTAGE: 26.4 VDC nominal weight: 52.9 lbs. (23.99 kg)
TECHNOLOGY: Advanced NanoPhosphate® lithium-ion cell chemistry Energy Density: 66 Wh/Kg
Charge Current Limiting: Programmable up to 4C or 10C unlimited Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Dimensions: 12.5" L x 14.7" W x 8.8" H Battery Life Expectancy: 8 years (average)
Certification: FAA TSO-C179b (Class A-4B), RTCA DO-311A, RTCA DO-160G, RTCA DO-178C DAL A, UNDOT/IATA case: Anodized aluminum, blue
Part Number: Description:
6431060-1 Aviation Battery (28VDC, 60Ah, Lithium-Ion)



FAA TSO C179a certified EASA ETSO C179a certified ANAC TSO C179a certified Part 23 AML STC certified RTCA/DO-160F qualified RTCA/DO-311 qualified
6431060-1
- Aviation Battery (28VDC, 60Ah, Lithium-Ion)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
