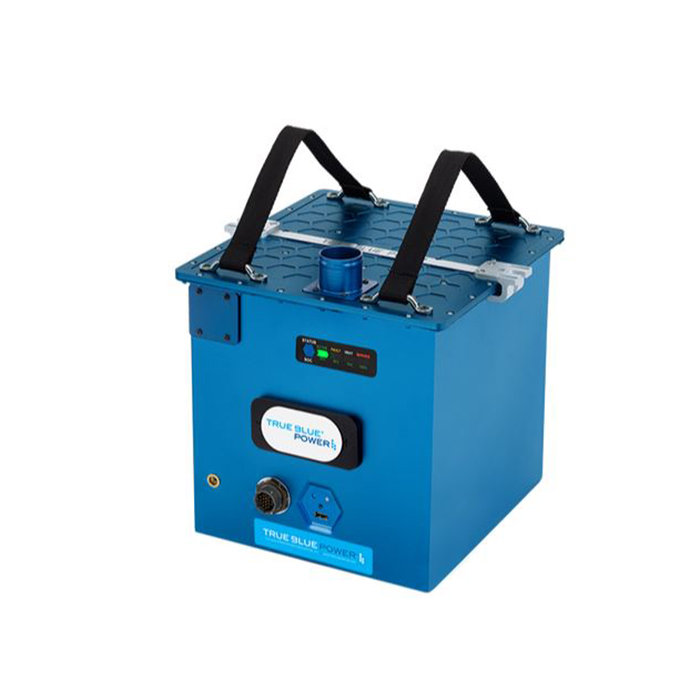

Picture of product TB50

Part #: 6430050-1

Model: TB50

OEM:

Mid-Continent

Desc:

Gen5 TB50

Part Number :





FEATURES

  • 50 amp-hour nominal at 23°C/73°F
  • Weighs 43.9 lbs. — up to 50% less than lead-acid and NiCad solutions
  • Advanced NanoPhosphate® lithium-ion cell chemistry
  • Higher voltage during engine start — Less wear, less maintenance and increased useful life
  • Superior high-temperature and cold-weather performance from -40°C to +70°C (-40°F to +158°F)
  • More than 1 amp-hour per pound
  • Automatic internal heater
  • Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
  • ARINC 429, Analog and Discrete communication
  • Built-in Test (BIT) Indicator communicates real-time state-of-charge and state-of-health
  • On-condition maintenance
  • Designed and built in Wichita, Kansas, USA
  • FAA TSO certified
  • Two-year limited warranty



SPECIFICATIONS
Capacity: 50 amp-hour nominal (at 23°C/73°F) Charge Voltage: 28 VDC nominal
Output Voltage: 26.4 VDC nominal Output Current: 460A continuous (1500A max)
Technology: Advanced NanoPhosphate® lithium-ion cell chemistry Energy Density: 66.3 Wh/Kg
Charge Current Limiting: Programmable up to 8C or unlimited Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Weight: 43.9 lbs. (19.91 kg) Dimensions: 10.9" L x 11.8" W x 10.1" H
Configuration: 21P8S; 7 parallel x 8 in series x 3 Battery Life Expectancy: 8 years (average)
Case: Anodized aluminum, blue Certification: FAA TSO-C179b (Class A-4B), RTCA DO-311A, RTCA DO-160G, RTCA DO-178C DAL A, UNDOT/IATA
Part Number: Description:
6430050-1 Gen5 TB50













6430050-1
- Lithium-ion Aircraft Battery
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
