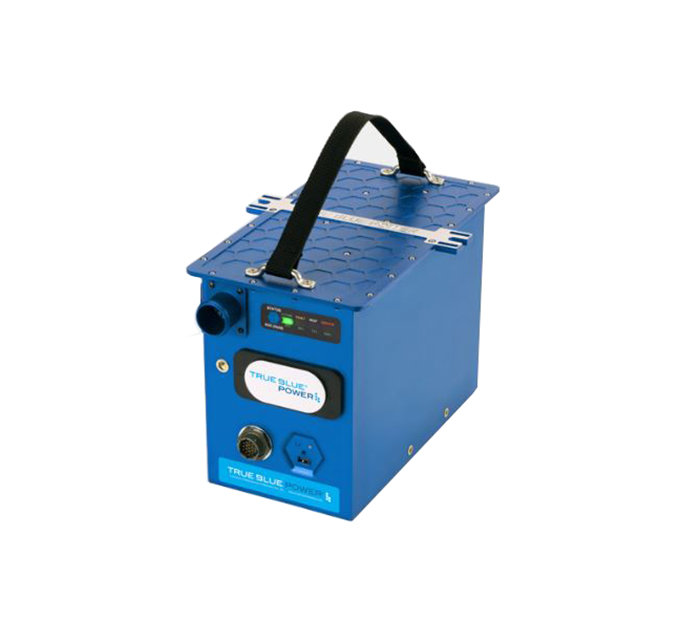

Picture of product TB30

Part #: 6430030-1

Model: TB30

OEM:

Mid-Continent

Part Number :



TB30

FEATURES
  • The TB30 lithium-ion aircraft battery offers on-condition maintenance and is configurable to meet the needs of each specific aircraft,
  • Including charge current limit, end-of-life capacity
  • Minimum dispatch capacity and engine-start readiness
  • The intelligent battery systems communicates in real-time with reliable and accurate state of charge and state of health
  • TB30 weighs up to 60% less, and delivers more amps per pound compared to other batteriers
  • Battery translates into more power for engine starts
  • More energy for emergency and back-up power with ultra-fast recharge and much longer life
  • 30 amp-hour nominal at 23°C/73°F
  • Weighs 27.7 lbs. — up to 60% less than lead-acid and NiCad solutions
  • Advanced NanoPhosphate® lithium-ion cell chemistry
  • Higher voltage during engine start — Less wear, less maintenance and increased useful life
  • Superior high-temperature and cold-weather performance from -40°C to +70°C (-40°F to +158°F)
  • More than 1 amp-hour per pound
  • Automatic internal heater
  • Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
  • Built-in Test (BIT) Indicator communicates real-time state-of-charge and state-of-health
  • On-condition maintenance
  • Designed and built in Wichita, Kansas, USA
  • FAA TSO certified
  • Two-year limited warranty
  • Software: version 1.0.1



SPECIFICATIONS
Dimensions: 12.5" L x 8.6" W x 8.8" H Weight: 27.7 lbs. (12.56 kg)
charge voltage: 28 VDC nominal Output voltage: 26.4 VDC nominal
Output current: 575A continuous, 1440A max technology: Advanced NanoPhosphate lithium-ion cell chemistry
CHARGE CURRENT LIMITING : Programmable up to 4C or 10C unlimited energy density:  63.1 WH/kg
operating temperature: -40°C to 70°C (-40°F to 158°F) configuration: 12P8S; 4 parallel x 8 in series x 3
maintenance: On-condition battery life expectancy: 8 years (average)
Case: Anodized aluminum, blue Certification: FAA TSO-C179b (Class A-4B),RTCA DO-311A, RTCA DO-160G, RTCA DO-178C DAL A, UNDOT/IATA
capacity: 30 amp-hour nominal (at 23°C/73°F)
Part Number: Description:
6430030-1 TB30 Advanced Lithium-ion  Aviation  Battery



°
6430030-1
- Aviation Battery (26.4 VDC, 30 Ah, Lithium)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
