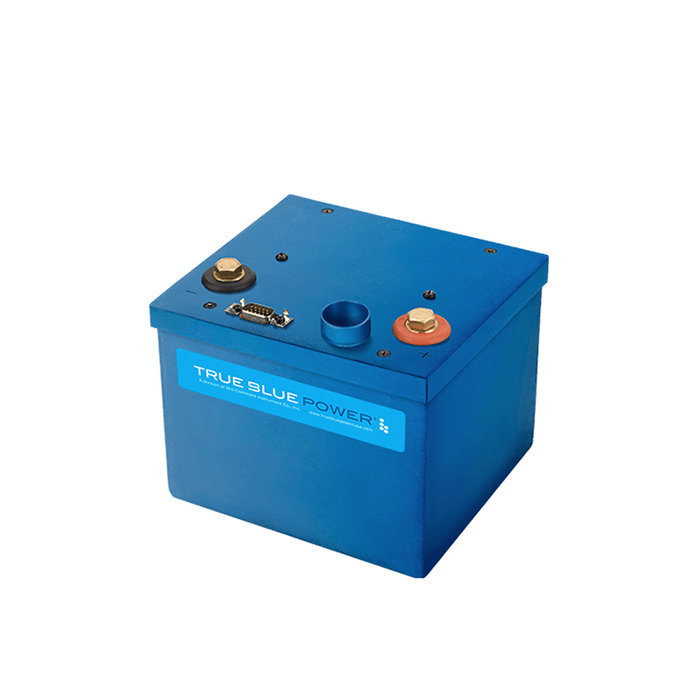

Picture of product TB28-12V

Part #: 6430014-1

Model: TB28-12V

OEM:

Mid-Continent

Desc:

Aviation Battery

Part Number :




TB28-12V
FEATURES
  • 26 amp-hour battery nominal at 23°C/73.4°F
  • Weighs 10 lbs. (4.54 kg)
  • Advanced iron phosphate lithium-ion cell chemistry
  • Higher voltage during engine start — Less wear, less maintenance and increased useful life
  • 50 minutes (at 35 amps average) for complete recharge when the battery is fully discharged
  • Superior high-temperature and cold-weather performance from -20°C to +70°C (-4°F to +158°F)
  • Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
  • Communicates battery status to the cockpit via RS-232, analog and discrete signals
  • On-condition maintenance
  • 8 years (average) life expectancy
  • Designed and built in Wichita, Kansas, USA
  • FAA TSO certified
  • Two-year limited warranty



SPECIFICATIONS

Configuration: 4P4S; 4 parallel cells x 4 series cells Charge Voltage: 14.4 VDC nominal
dimensions: 6.3” L x 5.6” W x 4.9” H weight: 10 lbs. (4.54 kg)
Operating Temperature: -20°C to +70°C (-4°F to +158°F) Output Voltage: 13.2 VDC nominal
Capacity: 26 amp-hour nominal at 23°C/73.4°F Output Current: 200A continuous, 850A max
Energy Density: 76 Wh/kg, 121 Wh/liter Case: Anodized aluminum, blue



Part Number: Description:
6430014-1 Aviation Battery



6430014-1
- Aviation Battery
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
