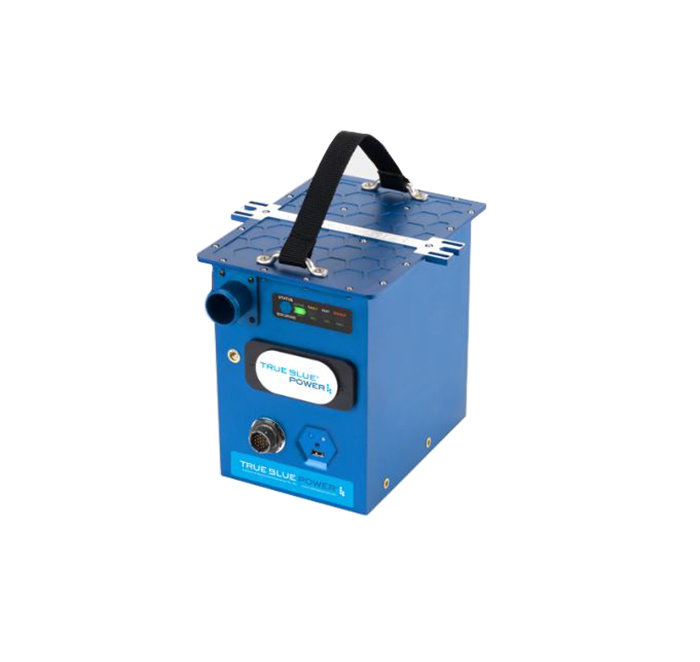

Picture of product TB20

Part #: 6430020-1

Model: TB20

OEM:

Mid-Continent

Part Number :



TB20

FEATURES
  • The TB20 lithium-ion aircraft battery offers on-condition maintenance and is configurable to meet the needs of each specific aircraft, including charge current limit, and end-of-life capacity
  • Minimum dispatch capacity and engine-start readiness
  • Intelligent battery systems that communicates in real-time
  • Reliable and accurate state of charge and state of health
  • TB20 weighs up to 60% less, and delivers more amps per pound, than any other battery
  • This translates into more power for engine starts, more energy for emergency and back-up power, ultra-fast recharge and much longer life
  • 20 amp-hour nominal at 23°C/73°F
  • Weighs 19.5 lbs. — up to 60% less than lead-acid and NiCad solutions
  • Advanced NanoPhosphate® lithium-ion cell chemistry
  • Higher voltage during engine start — Less wear, less maintenance and increased useful life
  • Superior high-temperature and cold-weather performance from -40°C to +70°C (-40°F to +158°F)
  • More than 1 amp-hour per pound
  • Automatic internal heater
  • Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
  • Built-in Test (BIT) Indicator communicates real-time state-of-charge and state-of-health
  • On-condition maintenance
  • Designed and built in Wichita, Kansas, USA
  • FAA TSO certified
  • Two-year limited warranty
  • Software: version 1.0.1



SPECIFICATIONS
Dimensions: 9.1" L x 8.6" W x 8.8" H Weight: 19.5 lbs. (8.85 kg)
charge voltage: 28 VDC nominal Output voltage: 26.4 VDC nominal
Output current: 525A continuous, 960A max technology: Advanced NanoPhosphate lithium-ion cell chemistry
CHARGE CURRENT LIMITING : Programmable up to 4C or 10C unlimited energy density:  59.7 WH/kg
operating temperature: -40°C to 70°C (-40°F to 158°F) configuration: 8P8S; 4 parallel x 8 in series x 2
maintenance: On-condition battery life expectancy: 8 years (average)
Case: Anodized aluminum, blue Certification: FAA TSO-C179b (Class A-4B),RTCA DO-311A, RTCA DO-160G, RTCA DO-178C DAL A, UNDOT/IATA
capacity: 20 amp-hour nominal (at 23°C/73°F)
Part Number: Description:
6430020-1 TB20 Advanced Lithium-ion  Aviation  Battery



°
6430020-1
- Aviation Battery (26.4VDC, 20 Ah, Lithium)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
