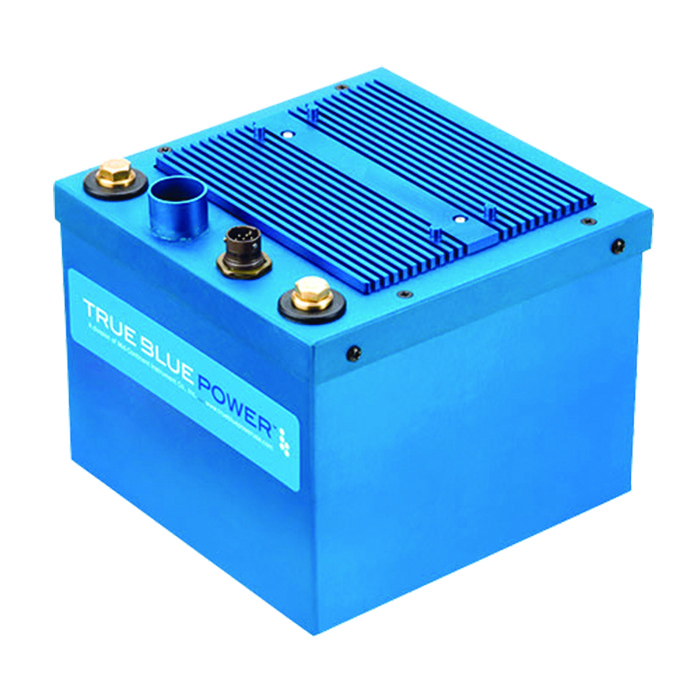

Picture of product TB17

Part #:

Model: TB17

OEM:

Mid-Continent

Part Number :




TB17
FEATURES
  • TB17 Advanced Lithium-ion Battery starts the aircraft’s engine quickly and features superior energy density
  • NanoPhosphate lithium-ion cells offer 3x the energy per kilogram
  • 45% lighter than lead-acid or nickel-cadmium alternatives
  • 17 amp-hour battery nominal at 23°C/73.4°F
  • Weighs 16 lbs. — 45% lighter than lead-acid or nickel-cadmium alternatives
  • Advanced NanoPhosphate® lithium-ion cell chemistry — 3x the energy per kilogram when compared to lead-acid and nickel-cadmium cells
  • 7 engine starts in 7 minutes
  • 30 minutes (at 34 amps) for complete recharge when the battery is fully discharged
  • Superior performance at extreme temperatures (-40°C/-40°F to 70°C/158°F)
  • Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
  • Communicates battery status to the cockpit
  • Higher voltage during engine start — Less wear, less maintenance and increased useful life
  • 2-year maintenance interval — 50 – 90% savings on maintenance costs
  • 8 years (average) useful life
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty
  • FAA TSO certified

SPECIFICATIONS
Dimensions: 7.22” L x 7.37” W x 6.01” H Weight: 16 lbs (7.26 kg)
charge voltage: 28 VDC nominal Output voltage: 26.4 VDC nominal
Output current: 500A continuous, 840A max technology: Advanced NanoPhosphate lithium-ion cell chemistry
Protection : Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting energy density:  64.4 WH/kg, 87.1 WH/liter
operating temperature: -40°C to 70°C (-40°F to 158°F) configuration: 7P8S; 7 parallel cells x 8 series modules
maintenance: 2-year maintenance interval; offers 50 – 90% savings on maintenance costs useful life: 8 years (average)
Case: Anodized aluminum, blue Certification: FAA TSO certified to C179a, ETSO certified to C179a, RTCA DO-311 qualified, RTCA DO-160G qualified, UNDOT/IATA qualified
capacity: 17 amp-hour nominal at 23°C/73.4°F
Part Number: Description:
6430017-1 TB17 Advanced Lithium-ion  Aviation  Battery
6430017-2 TB17 Advanced Lithium-ion  Aviation  Battery
6430017-3 Aviation Battery, TB17 Advanced Lithium-ion
6430017-4 Aviation Battery, TB17 Advanced Lithium-ion



°
6430017-2
- Lithium-ion battery, 17 amp hour, heater on/off
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430017-3
- Aviation Battery
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430017-4
- Aviation Battery
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430017-1
- Lithium-Ion Battery, 17 Amp Hour
Price Condition Status
REQUEST NEW OUTRIGHT DUE IN
