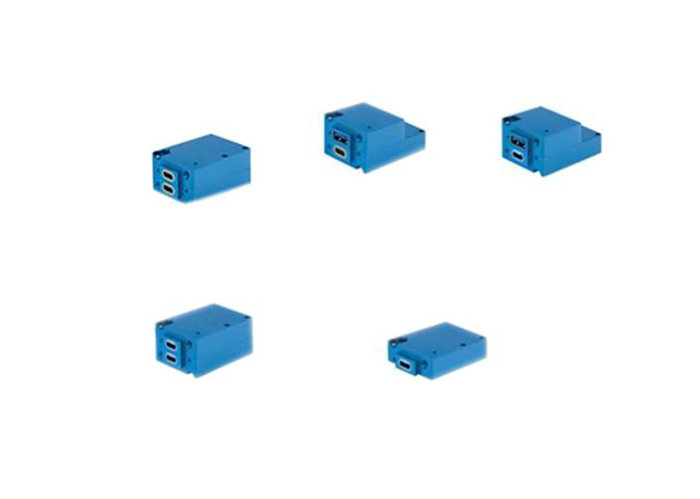

Picture of product TA360

Part #:

Model: TA360

OEM:

Mid-Continent

Desc:

USB Charging Port

Part Number :



TA360 Series USB



FEATURES
  • TA360 series USB Power Dlelivery (PD) Charging Port is a certified accessory that charges any electric device
  • USB Type-A or USB Type-C charging connector
  • Supports the latest version of the USB Charging standard
  • Smart charger provides intelligent negotiation with the connected cable and device to supply variable voltage at 3 amps
  • Provides Maximum charging speed to a wide of electronic devices
  • Prevents devices from being overcharged or charged incorrectly



SPECIFICATIONS

input voltage: 22-32 VDC INPUT POWER: 135 watts max; 4.8 amps @ 28 VDC
OUTPUT VOLTAGE: Auto-adjustable: 5VDC, 9VDC, 15VDC, 20VDC per port (±0.25 VDC) OUTER POWER: 3.0 amps max oer port
efficiency: ~90% nominal weight: 1.0 oz Single Type-C Port, 1.8 oz Dual Type-A/Type-C Port, 2.1 oz Dual Type-C Port
Single dimensions: (Single Port Units) 1.50 inches W x 0.52 Inches High x 2.0 inches deep (38mm wide x 13 mm x 50 mm deep) dual dimensions: (Dual Port Units)1.50 inches W x 1.03 Inches High x 2.0 inches deep (38mm wide x 26 mm x 50 mm deep)
mounting: Panel mount; Rear input connector: MCIA P/N 9017960
CERTIFICATION: FAA/TSO-C71 eNVIRONMENT QUALIFICATION: RTCA/DO-160G
USB POWER DELIVERY (pd) Version 2.0 and Version 3.0







Part Number: Description:
6430360-1 75W/ 6A out, 22-32 VDC in, Dual USB-A/USB-C PD, Rear connector
6430360-11 75W/ 6A out, 22-32 VDC in, Dual USB-A/USB-C PD, Rear connector, Lighted
6430360-13 120W/ 6A out, 22-32 VDC in, Dual USB-A/USB-C PD, Rear connector, Lighted
6430360-17 60W/ 3A out, 22-32 VDC in, SingleUSB-A/USB-C PD, Rear connector, Lighted
6430360-3 120W/ 6A out, 22-32 VDC in, Dual USB-A/USB-C PD, Rear connector, Lighted







6430360-1
- USB Charging Port
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430360-11
- USB Charging Port
Price Condition Status
$525.00 NEW OUTRIGHT REQUEST LEAD TIME
6430360-13
- USB Charging Port
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430360-17
- USB Charging Port
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430360-3
- USB Charging Port
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430360-7
- USB Charging Port
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
