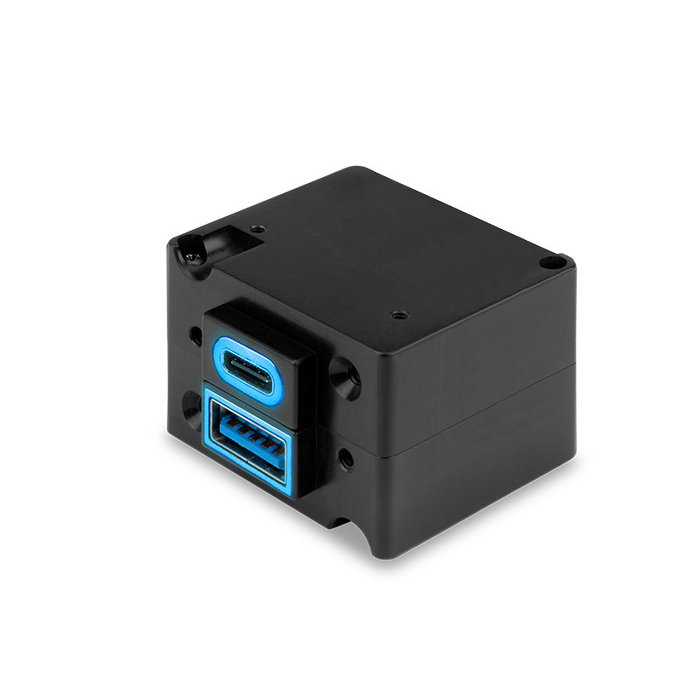

Picture of product TA245
Model: TA245
Desc: USB Charger
OEM: Mid-Continent
Part Number :





FEATURES

  • Dual USB-C / USB-A, 45W / 36W, 3A per port, 12–32 VDC in
  • Rear connector, Lighted
  • Simultaneously provides 3 amps of power per charging port to USB-A and USB-C electronic devices
  • 12 – 32 VDC input voltage
  • Dual USB-A / USB-C connectors
  • USB-C; Power Delivery 3.0, Programmable Power Supply 3.0, Battery Charging 1.2
  • USB-A; Qualcomm® Quick Charge™ 3.0, Battery Charging 1.2
  • Manual lighting control
  • Colored status indications: power, charging, fault
  • Charge one or two devices at full power
  • Short circuit, power surge, overload and over temperature protection
  • In-seat, cabin, cockpit and galley applications



SPECIFICATIONS

Input Voltage: 12 – 32 VDC Input Power: 52 W per port (maximum)
Weight: 1.8 ounces (52 grams) Dimensions: 1.5” W x 1.03” H x 1.25” D
Output Voltage: USB-C; 3.3 – 20 VDC @ up to 3.0 A per port, USB-A; 3.6 – 12 VDC @ 3.0 A per port Output Power: USB-C; 45 W max per port, USB-A; 36 W max per port
Output Current: 3.0 amps per port Power Input: Rear
USB Connector: Dual USB-A / USB-C Mating Connector Kit: MCI P/N 9017960 (included)
Case: Anodized aluminum, black Installation: In-seat, cabin, cockpit and galley
Mounting: Front or rear; faceplates and adapter plates (optional) Certification: FAA TSO C71 pending, EASA ETSO C71 pending, RTCA DO-160G pending



Part Number: Description:
6430245-11

Dual USB-C / USB-A, 45W / 36W, 3A per port, 12–32 VDC in, Rear connector, Lighted

6430245-13 Dual USB-C, 45W, 3A per port, 12–32 VDC in, Rear connector, Lighted
6430245-15

Dual USB-A, 36W, 3A per port, 12–32 VDC in, Rear connector, Lighted

6430245-17

Single USB-C, 45W, 3A per port, 12–32 VDC in, Rear connector, Lighted

6430245-19 Single USB-A, 36W, 3A per port, 12–32 VDC in, Rear connector, Lighted





6430245-11
- USB Charger
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430245-13
- USB Charger
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430245-15
- USB Charger
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430245-17
- USB Charger
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430245-19
- USB Charger
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
