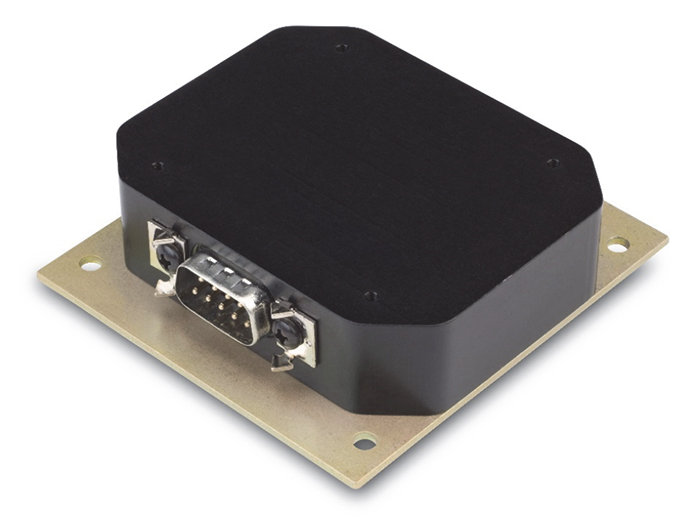

Picture of product MD32

Part #: 6420032-1

Model: MD32

NSN:

6625-01-681-6642

OEM:

Mid-Continent

Desc:

Magnetometer

Part Number :


MD32
FEATURES
  • Magnetometer
  • 7-32 VDC power input
  • ARINC 429 output
  • Unique mounting flexibility

SPECIFICATIONS
Power Input: 7-32 VDC; 0.56 W max Output arinc: 429 custom format
dimensions: 2.75" x 3.0" x 0.81" weight: 0.19 lbs (3 oz)
temperature: -55°C to +70°C altitude:  55,000 feet
manufactured: Designed and built in Wichita, Kansas USA



Part Number magnetometer Description:
6420032-1 7-32V, ARINC 429



6420032-1
- Magnetometer

NSN: 6625-01-681-6642

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
