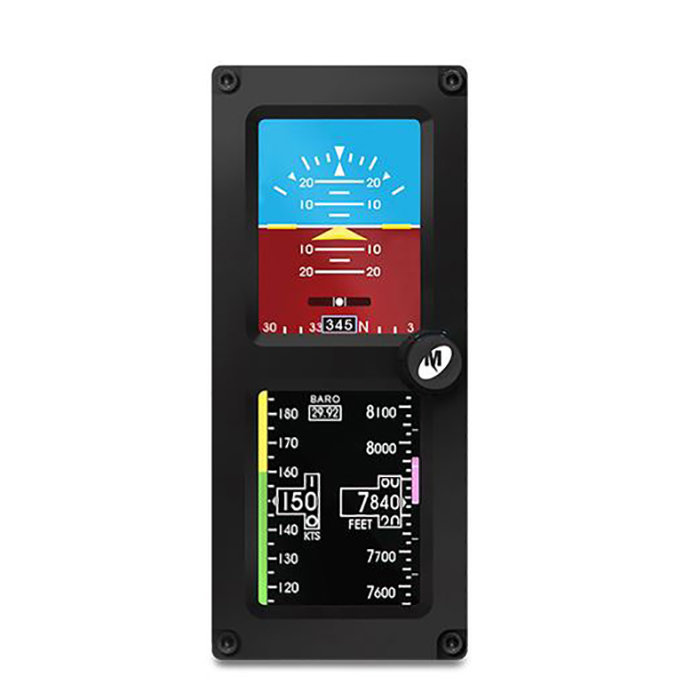

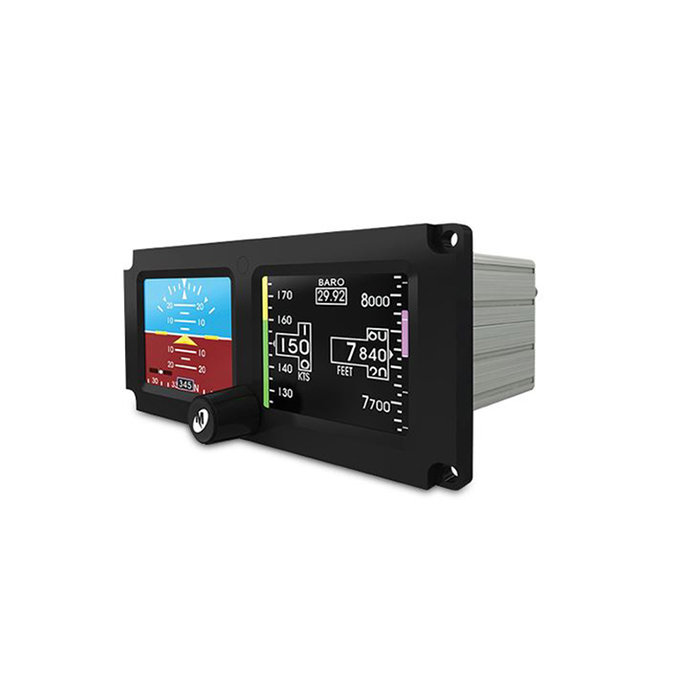

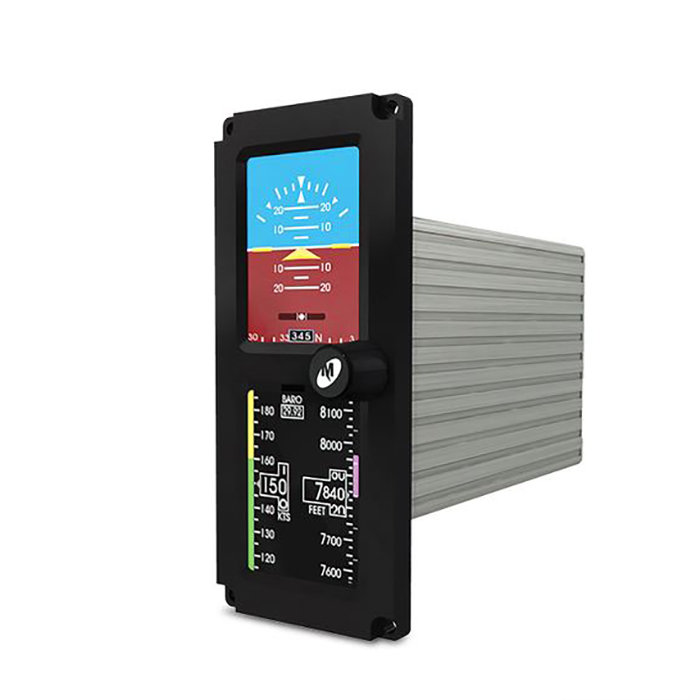

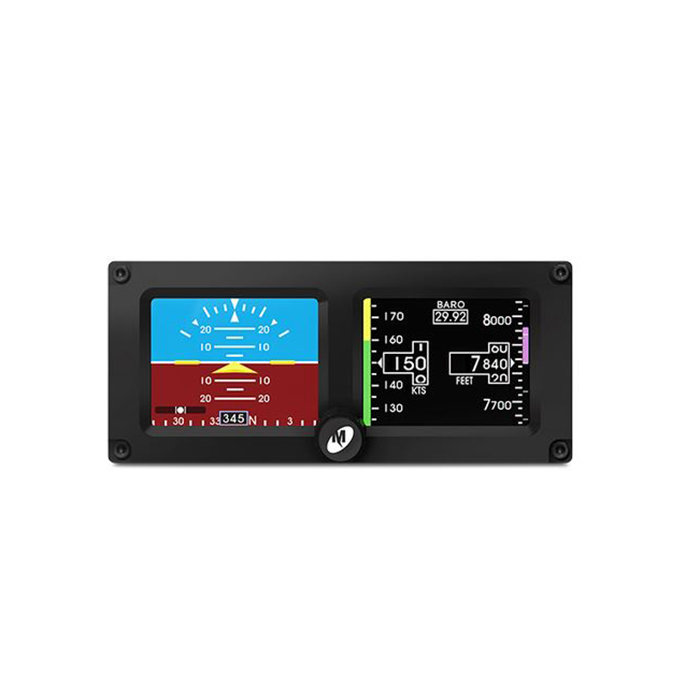

Picture of product MD302

Part #:

Model: MD302

OEM:

Mid-Continent

Desc:

Standby Attitude Module

Part Number :


MD302
FEATURES
  • Digital Standby Attitude Module (SAM)
  • Attitude, Altitude, Airspeed and Slip information with ARINC 429 output
  • 10-32 VDC power input
  • Black or Gray Bezel option (see chart below)
  • With or without Internal Battery option (see chart below)
  • Battery backup has 2 types available:
    • Type 1 Lithium-Ion = 3 cells in series x 3.3V x 1.0Ah = 9.9 Watt-hours
    • Type 2 Nickel Metal Hydride = 5 cells in series x 1.2V x 2.0Ah = 12 Watt-hours
  • Small 2.4" x 5.5" footprint
  • Lightweight - 1.6 lbs
  • Self-contained, rechargeable Nanophosphate® lithium-ion emergency battery (option)
  • Smooth, high-definition graphics
  • Two-screen display with wide viewing angles and a user-friendly menu structure
  • Selectable orientation - horizontal and vertical
  • Aircraft-specific, programmable airspeed range markings
  • Easy installation - one knob configures the display and provides menu control to the pilot
  • External, automatic and manual dimming control settings
  • Software configurable lighting curves
  • Field-upgradable software via standard USB port
  • FAA TSO certified to C2d, C3e, C4c, C10b, C106, C113a, C179a
  • EASA ETSO certified to C2d, C3d (incomplete), C4c, C10b, C106, C113, C179a
  • RTCA DO-178B and DO-254 Design Assurance Level (DAL) A
  • RTCA DO-160 qualified
  • Designed and built in Wichita, Kansas, USA



SPECIFICATIONS
Dimensions: Bezel: 2.37" H x 5.5" W x 0.33" D Chassis: 2.31" H x 3.16" W x 4.84"D Weight: 1.6 lbs (0.73 kg)
Power Input: 10-32 VDC; 6W nominal, 25W max Output: ARINC 429
Operating Range: Attitude: 300° per second pitch, roll & yaw (max) Altitude: -1,500 to +55,000 ft Airspeed: 20 to 50 knots Units of Measure: Altitude: feet or meters Barometric Setting: inches of mercury, millibars Airspeed: knots, miles per hour or kilometers per hour
Panel Tilt: Configurable: -10°to +90° pitch Lighting:  5, 14 and 28 VDC input
Pilot Interface: 16-detent, push and turn knob Battery (option): Rechargeable, field-replaceable, internal battery 60 minutes minimum when fully charged & maintained
Mounting: Front panel mounted Connectors: Mid-Continent PN 9017646 kit contains custom DB15 connector with configuration module, pilot & static connectors
Part Number SAM Description:
6420302-1 Black bezel, Type 1 Internal Battery
6420302-2 Black bezel, No Internal Battery
6420302-3 No bezel, No Internal Battery - Remote Mount Version
6420302-4 Gray bezel, Type 1 Internal Battery
6420302-5 Gray bezel, No Internal Battery
6420302-6 Black bezel, No Internal Battery, Non-standard version
6420302-7 Black bezel, Type 2 Internal Battery
6420302-8 Gray bezel, Type 2 Internal Battery



°
6420302-1
- Standby Attitude Module (w/ Type 1 Battery)

NSN: 6610-01-679-5229

Price Condition Status
$9,250.00 NEW OUTRIGHT REQUEST LEAD TIME
6420302-2
- Standby Attitude Module
Price Condition Status
$9,915.00 NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
6420302-3
- Standby Attitude Module (Remote Mount)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
6420302-4
- Standby Attitude Module (w/ Type 1 Battery)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
6420302-5
- Standby Attitude Module
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
6420302-6
- Standby Attitude Module
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6420302-7
- Standby Attitude Module (w/ Type 2 Battery)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6420302-8
- Standby Attitude Module (w/ Type 2 Battery)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Type 1 is Lithium-Ion with 3 cells in series x 3.3V x 1.0Ah equaling 9.9 Watt-hours of standby use. Type 2 is Nickel Metal Hydride with 5 cells in series x 1.2V x 2.0Ah equaling 12 Watt-hours


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
