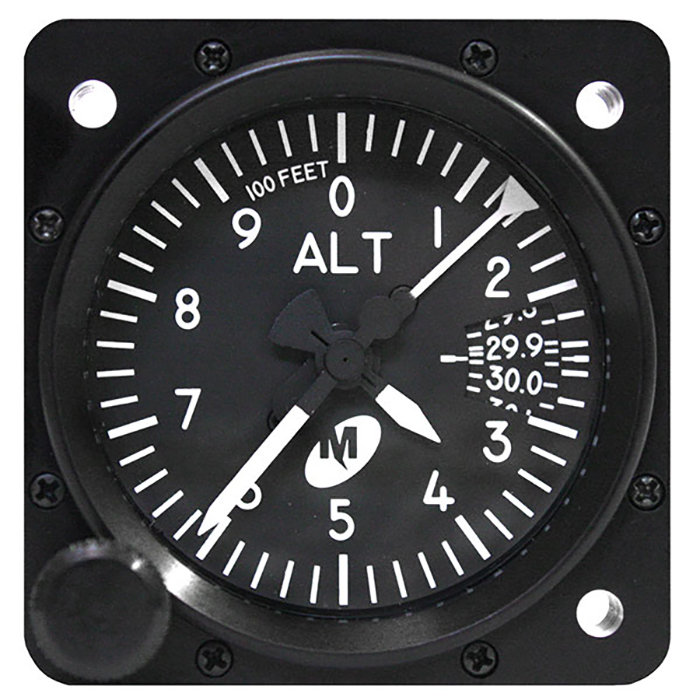

Picture of product MD15

Part #:

Model: MD15

OEM:

Mid-Continent

Desc:

2" Altimeter, 20K

Part Number :


MD15

FEATURES
  • The model MD15-( ) series two-inch Altimeter is a pressure actuated, sensitive altimeter built to meet or exceed SAE AS392C standards as per FAA TSO-C10b
  • Three-pointer indication (100 feet, 1000 feet, and 10,000 feet) and an inset dial displaying the manual knob adjustment for barometric pressure correction
  • Internally, a compensation mechanism maintains accuracy throughout the rated temperature range


SPECIFICATIONS

Certification: FAA TSO-C10b COVER GLASS: HEA (anti-reflective) coated per MIL-C-14806
Color: Dial background is black #37038 per FED-STD-595, Markings are white #37875 per FED-STD-595, Pointers are white with black hub and counterweight, Case and bezel are black HUMIDITY: 95% @ +70°C and 100% @ +38°C
STORAGE TEMPERATURE:  -65°C to +70°C (-85°F to +158°F) Operating Temperature: -30°C to +50°C (-22°F to +122°F)
ALTITUDE SURVIVABLE: -1,000 ft to +50,000 ft ALTITUDE VALID: -1,000 ft to (rated range)
MAGNETIC effect: No effect at 0.0m from unit; DO-160F, Section 15, Category Y LIGHTING: Field replaceable light tray available for 5, 14, & 28VDC input with incandescent bulbs or white LEDs
Connections: 9/16-18 UNJF-3B per MS33649-06 Environmental: RTCA DO-160F Env. Cat. (C1)CXXXXWXSFSXXXXXXXXXXXX
Mounting: Rear mount WEIGHT: 0.8 lbs



Part Number: Description:
MD15-211 2" Altimeter 20,000 Millibars (Right Knob)
MD15-212 2" Altimeter 20,000 Millibars (Left Knob)
MD15-221 2" Altimeter 20,000 In Hg (Right Knob)
MD15-222 2" Altimeter 20,000 In Hg (Left Knob)
MD15-311 2" Altimeter 35,000 Millibars (Right Knob)
MD15-312 2" Altimeter 35,000 Millibars (Left Knob)
MD15-321 2" Altimeter 35,000 In Hg (Right Knob)
MD15-322 2" Altimeter 35,000 In Hg (Left  Knob)







MD15-211
- Altimeter 2-Inch, 20K
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
MD15-212
- 2" Altimeter, 20K
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
MD15-221
- 2" Altimeter, 20K
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
MD15-222
- 2" Altimeter, 20K
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
MD15-311
- 2" Altimeter, 35K
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
MD15-312
- 2" Altimeter, 35K

NSN: 6610-01-665-2857

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
