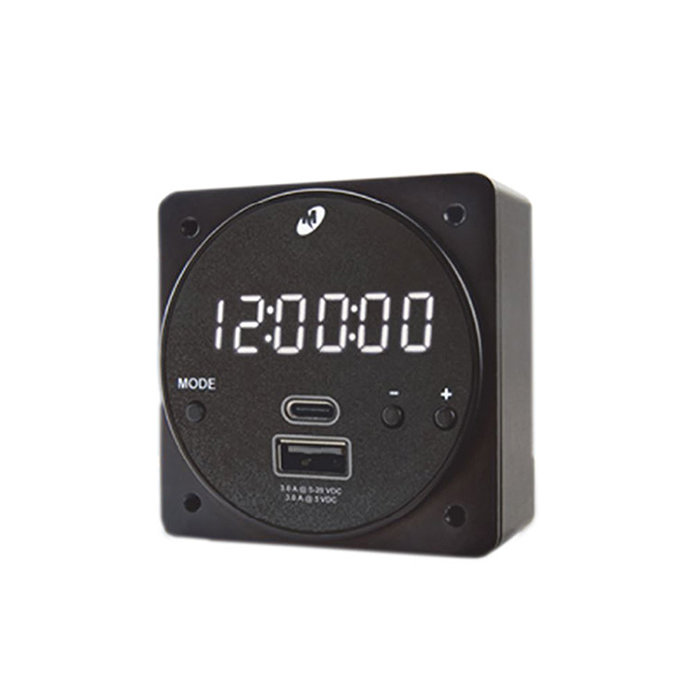

Picture of product CH93

Part #:

Model: CH93

OEM:

Mid-Continent

Desc:

Digital Clock, USB Charger

Part Number :


CH93



FEATURES

  • Six-digit, seven-segment LED clock
  • Modes: Local Time, UTC / Zulu Time, Flight Timer, Countdown Timer, Stopwatch
  • Clock settings include 12- or 24-hour mode and seconds On or Off
  • External lighting control and built-in photocell for automatic dimming
  • Internal, field-replaceable battery maintains time and Flight Timer memory, without aircraft power
  • Compact, 2-inch size fits standard panel cutout
  • 30 watts / 6 amps USB power
  • Compatible with Apple, Android and other USB devices
  • Protects itself and the charging device from short circuit, power surges and over-current potential
  • Designed and built in Wichita, Kansas, USA
  • 2-year limited warranty



SPECIFICATIONS

Power Input: 10–32 VDC; 36 W maximum, 2.6A @ 14 VDC; 1.3A @ 28 VDC Weight: 5.0 oz. (0.3 lbs.)
Clock Accuracy: ±0.5 seconds in 24 hours, ± 3 minutes per year Altitude: 55,000 ft.
USB Power Output: 5.0 ± 0.25 VDC; 30 W, 6.0A Temperature: -40ºC to 70ºC (-40ºF to 158ºF)
Modes: Local Time, UTC / Zulu Time, Flight Timer, Countdown Timer, Stopwatch Mounting: Rear-panel mounted, (4) #6 screws
Dimensions: 2.39 x 2.39 x 1.15 inches Connector Kit: MCIA P/N 9018178
Case: Anodized aluminum black USB Interface: Dual USB-A
Certification: FAA TSO certified to C71, EASA ETSO certified to C71, RTCA DO-160G qualified





Part Number: Description:
6420093-0 CHRONOS Digital Clock, 2-Inch, Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT, Secondary Air Temp
6420093-2 CHRONOS Digital Clock / High Power USB Charger, 2-Inch, Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Dual USB-A, 15W/3A Out per port, 10-32 VDC
6420093-3 CHRONOS Digital Clock / High Power USB Charger, 2-Inch, Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Single USB-A, 15W/3A Out per port, 10-32 VDC
6420093-4 CHRONOS Digital Clock / High Power USB Charger, 2-Inch, Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT, Secondary Air Temp, Dual USB-A, 15W/3A Out per port, 10-32 VDC
6420093-5 CHRONOS Digital Clock / High Power USB Charger, 2-Inch, Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT, Secondary Air Temp, Dual USB-A/USB-C, 15W/3A Out per port and 60W/3A out per port, 22-32 VDC



6420093-0
- CHRONOS Digital Clock
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6420093-2
- CHRONOS Digital Clock
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6420093-3
- CHRONOS Digital Clock
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6420093-4
- CHRONOS Digital Clock
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6420093-5
- CHRONOS Digital Clock
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
