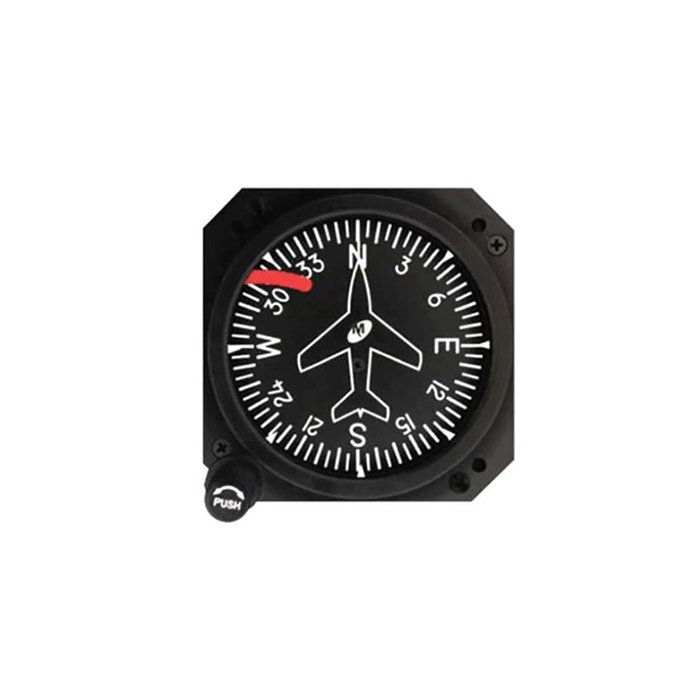

Picture of product 3300

Part #: 3300-10

Model: 3300

OEM:

Mid-Continent

Desc:

Directional Gyro, Electric

Part Number :







FEATURES

  • Direct replacement for many AIM205 and RC Allen RCA15 units
  • Multi-voltage 10–32 volt DC input remains valid until the aircraft main battery discharges to 10 VDC
  • Enhanced warning circuit monitors input voltage and rotor speed so if either insufficient at night, the compass card disappears
  • Designed specifically for use in high vibration applications
  • Warning flag monitors rotor speed and power input
  • Anti-reflective glass
  • FAA TSO-C5e certified and RTCA DO-160E qualified
  • RTCA DO-160E HIRF immunity





SPECIFICATIONS
MTBF: 2,500 hours Certification: FAA TSO-C4c
Power Input: 10–32 VDC Connector: 4-pin (MS3116E8-4P)
Altitude: –15,000 to +50,000 feet Mating Connector: MS3116F8-4S
Glass: Special HEA anti-reflective coating Weight: 1.9 lbs.
Length: 4.65 inches Mounting: Rear mount standard 3-1/8" round panel cutout
Temperature Range: –40°C to +55°C (–40°F to 130°F) Current Rating: At 14 VDC, Start: 1.4A Max., Run: 0.44A nominal, At 28 VDC, Start: 0.6A Max., Run: 0.22A nominal
Color: Index Marks, Text, Symbolic Airplane, Logo: White, Bezel, Dial Background: Black Power/Rotor Speed Warning Flag: Red
Part Number: Description:
3300-10 10-32 VDC
3300-11 10-32 VDC, LED Lighting




3300-10
- Directional Gyro, Electric
Price Condition Status
REQUEST OH EXCHANGE IN WORK
$3,150.00 OH OUTRIGHT IN WORK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3300-11
- Directional Gyro, Electric
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
