Picture of product 1394T10010RZ

Part #: 1394T100-10RZ

Model: 1394T10010RZ

OEM:

Mid-Continent

Desc:

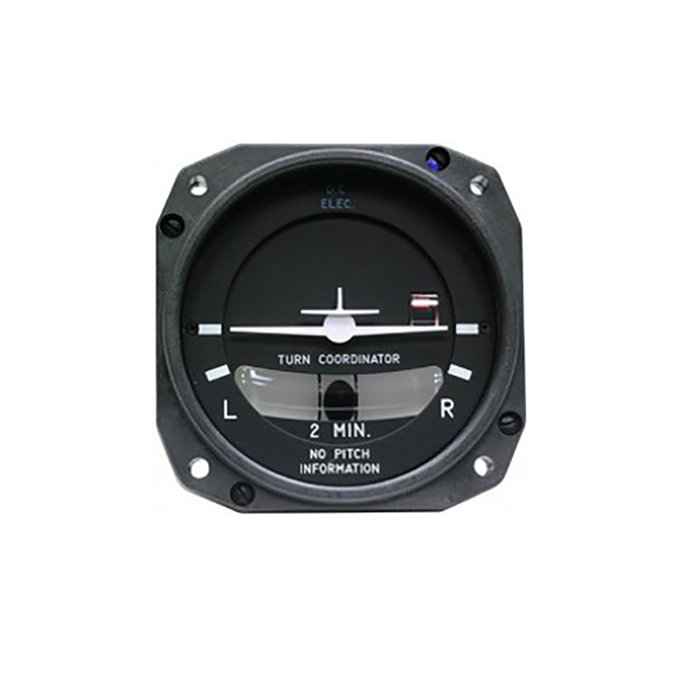

Turn Coordinator

Part Number :



1394T100-10RZ

FEATURES

  • Standard 2-minute turn coordinator originally manufactured by Electric Gyro Corp. (EGC)
  • Includes autopilot pickoff designed for use with Bendix/King KAP-140 autopilot
  • Includes rotor speed sensor and special tach output
  • Power warning indicator
  • Certified to FAA TSO C3b
  • Lighted Bezel with HEA non-glare glass
  • 12-32VDC input voltage range
  • White inclinometer background color, black inclinometer ball color
  • 5 pin connector
  • 3 1/8" front or rear panel mounting



SPECIFICATIONS

Dimensions: 3.25"W x 3.25"H x 4.25"D Weight: 1.2 lbs.
Rotor Type: DC Altitude: -1000 to 35000 ft.
Power Consumption: 0.35A Temperature: -30 to +50C





Part Number: Description:
1394t100-10rz Turn Coordinator



1394T100-10RZ
- Turn Coordinator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
